Prince Gladiator Series SAE Heavy‑duty Welded Double‑acting Hydraulic Cylinder 210 Bar
Example Models:
- SAE-22008
- SAE-22012
- SAE-22016
- SAE-22024
- SAE-22030
- SAE-22036
- SAE-22048*
- SAE-22054*
- SAE-22060*

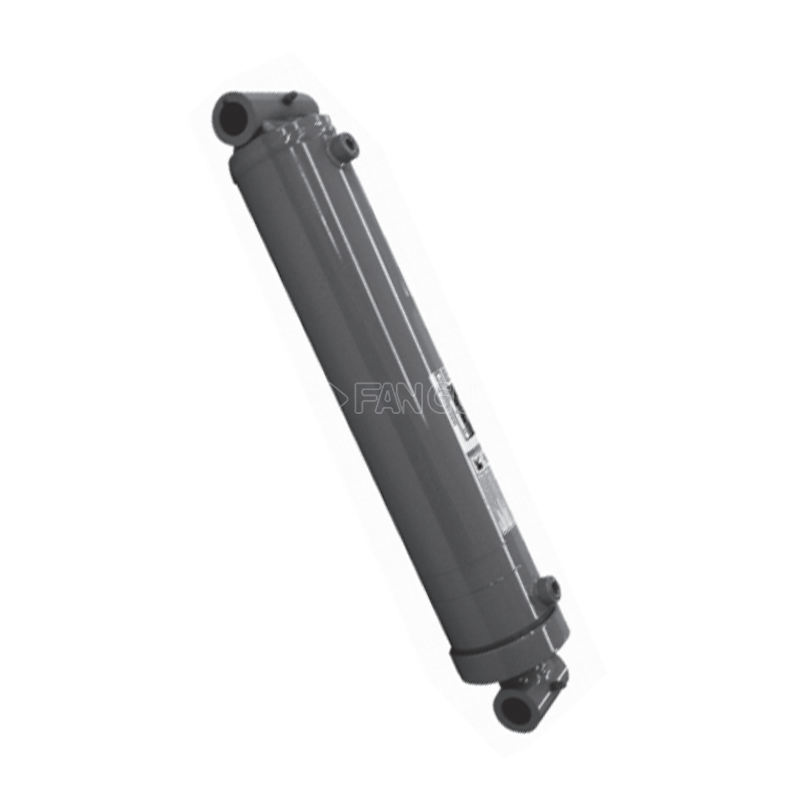

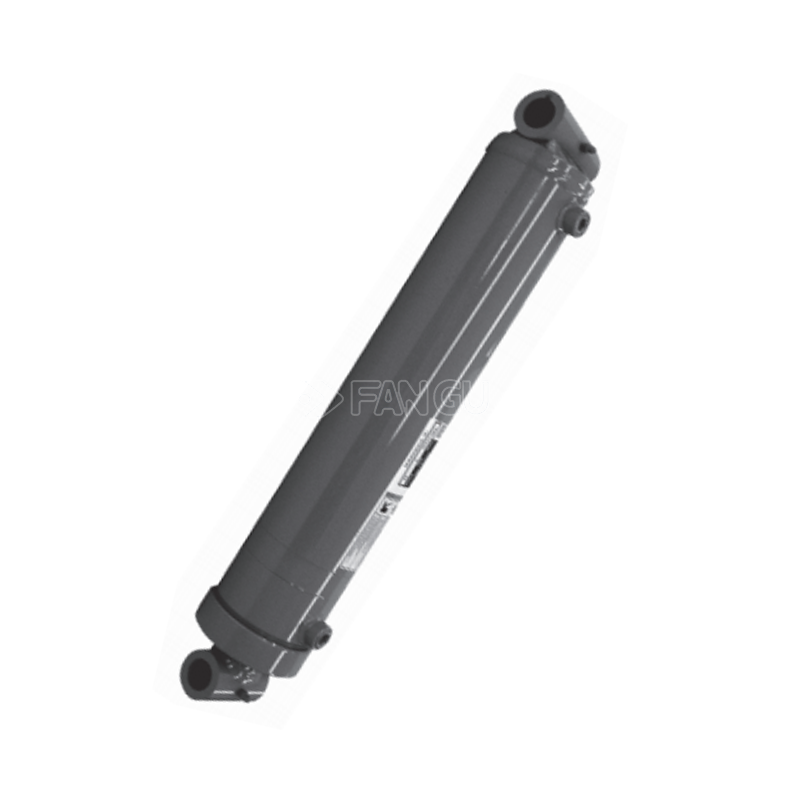

Prince Gladiator Series Hydraulic Cylinders
The Prince Gladiator series is a heavy‑duty, welded, double‑acting hydraulic cylinder designed for 3000 PSI (210 bar) continuous operation, built for severe‑duty applications where durability and high force are critical. As one of Prince’s premium welded cylinder lines, it shares the 3000 PSI rating with the Fortress series but features larger bore sizes and enhanced heavy‑duty construction for higher load capacities.
Typical Applications
- Construction: Excavators, loaders, bulldozers, crane booms
- Agriculture: Large farm implements, grain handling equipment, heavy trailers
- Material Handling: Forklifts, container handlers, industrial cranes
- Mining & Quarrying: Rock crushers, conveyor systems, heavy lifting equipment
- Industrial: Presses, stamping machines, heavy‑duty automation
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Type: Welded construction, double‑acting (bidirectional force)
- Rated Pressure: 3000 PSI (210 bar) continuous; 4500 PSI (315 bar) proof pressure
- Bore Sizes: 5.0 in, 6.0 in, 7.0 in (larger than Fortress’s 4.5 in standard bore)
- Rod Sizes: 2.5 in, 3.0 in, 3.5 in (matched to bore for optimal strength)
- Standard Strokes: 12 in – 60 in (custom strokes up to 84 in available)
- Material: High‑strength steel barrel; hard‑chromed 1045 steel rod (corrosion & wear resistance)
- Seal System: Premium NBR/FKM seals (temperature range: ‑20°F to +180°F / ‑29°C to +82°C)
- Mounting Styles: Clevis (‑C), Cross‑Tube (‑XT), Front Flange (‑F), Trunnion (‑TR), Pin‑Head (‑PH)
- Heavy‑Duty Welded Design: Eliminates tie‑rod bending risks; robust construction for shock loads and side forces.
- Higher Load Capacity: Larger bores (5–7 in) deliver 20–50% higher thrust than Fortress (4.5 in bore) for heavy machinery.
- Enhanced Durability: Hard‑chromed rod + heavy‑duty seals extend service life in harsh environments (dirt, moisture, extreme temperatures).
- Versatile Mounting: Multiple mounting options fit diverse equipment designs (agricultural, construction, material handling).
- Interchangeability: Compatible with SAE standard mounting dimensions for easy OEM replacement.
