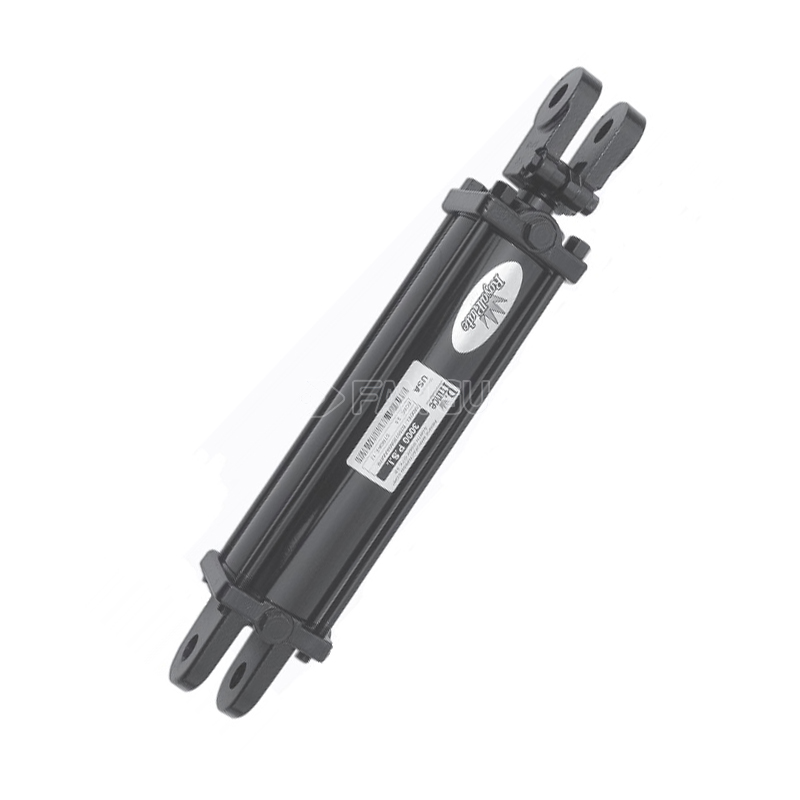

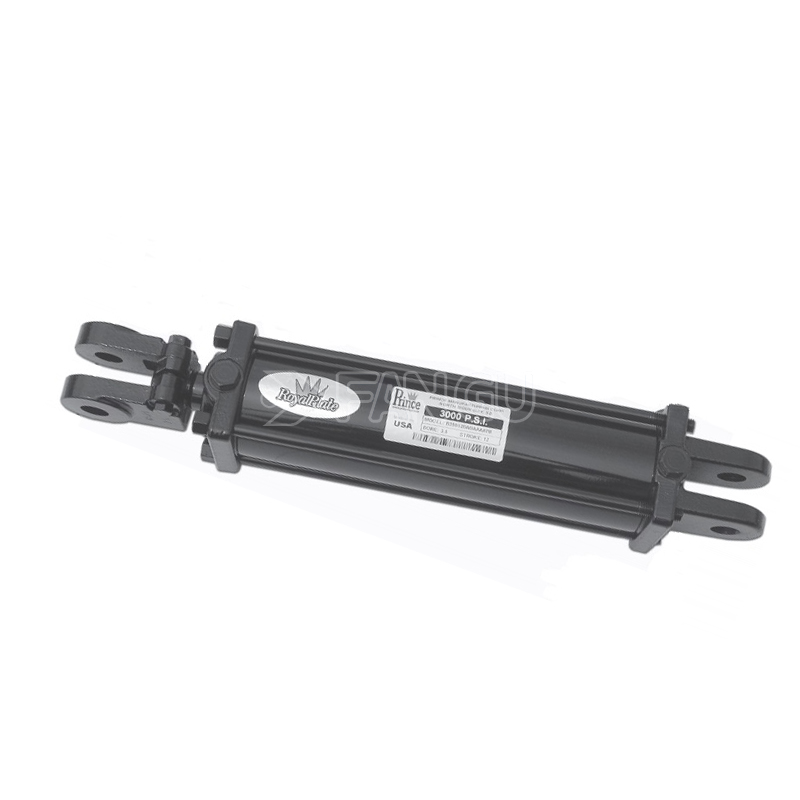

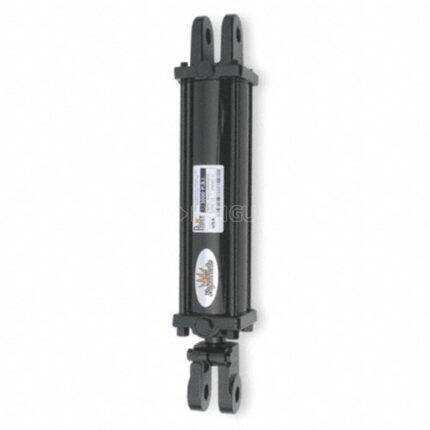

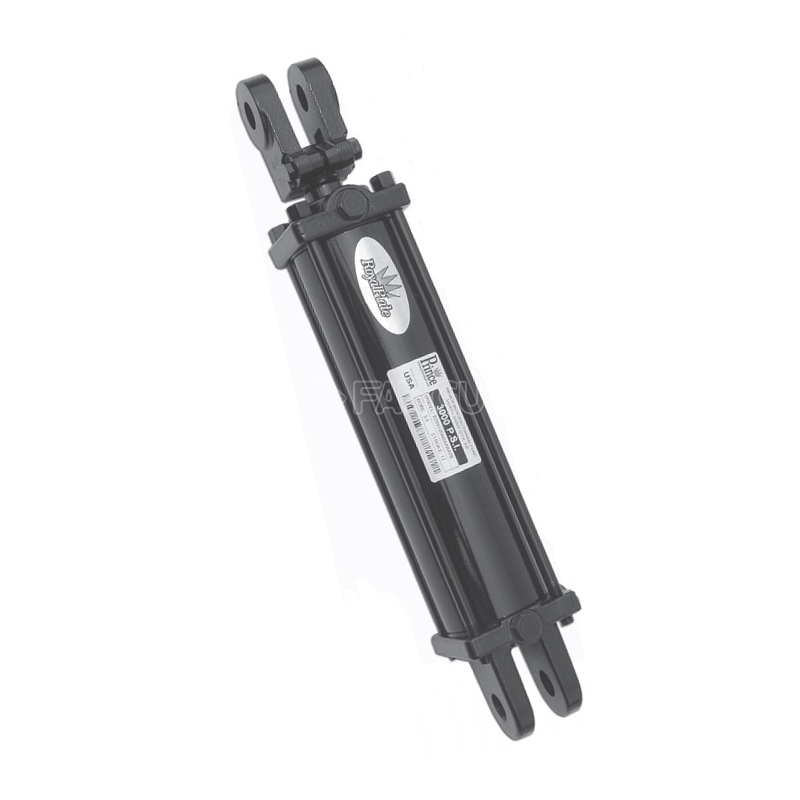

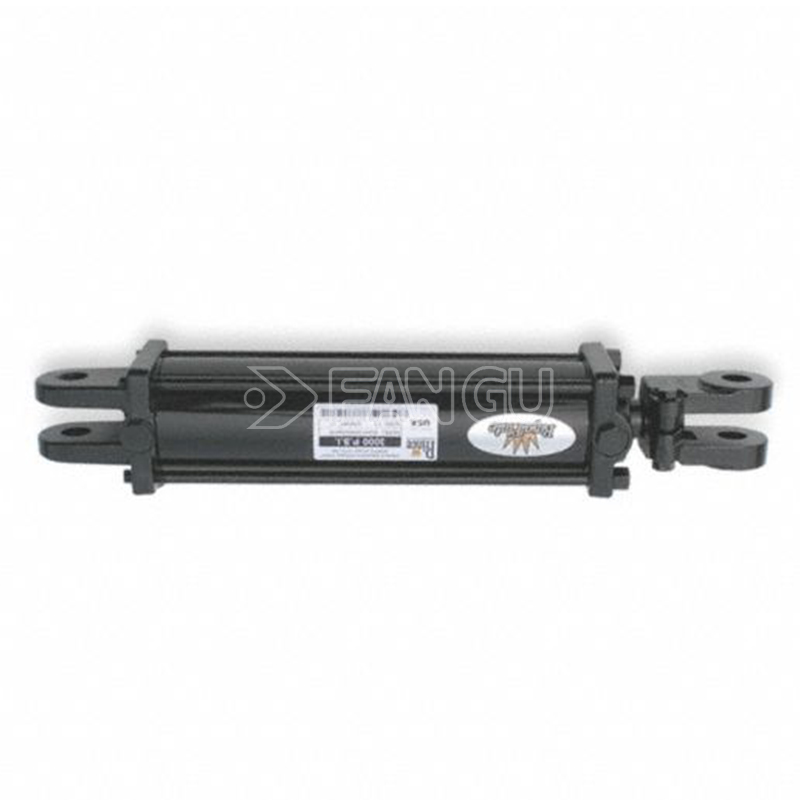

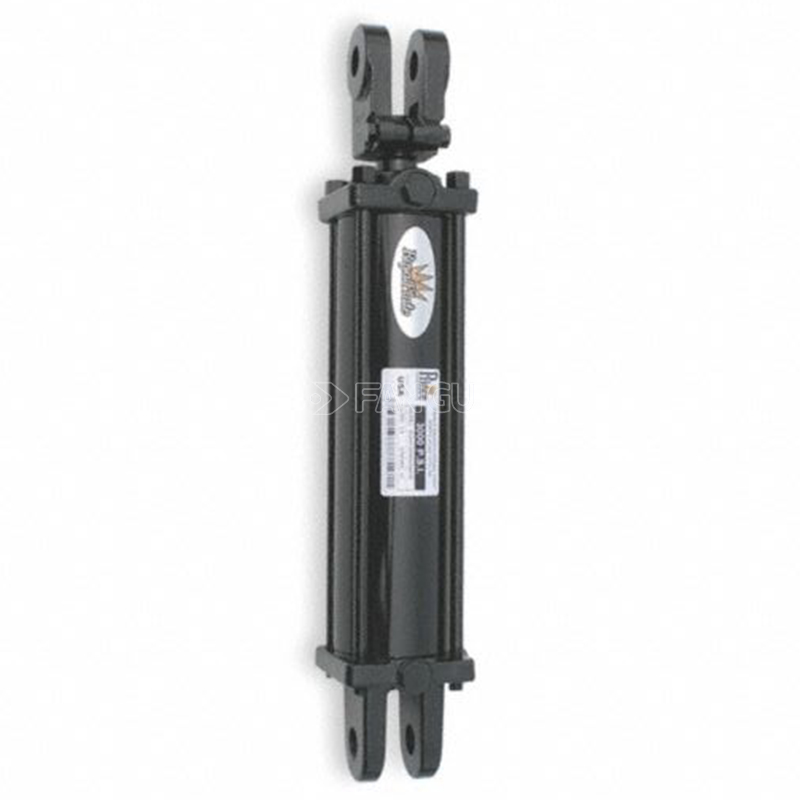

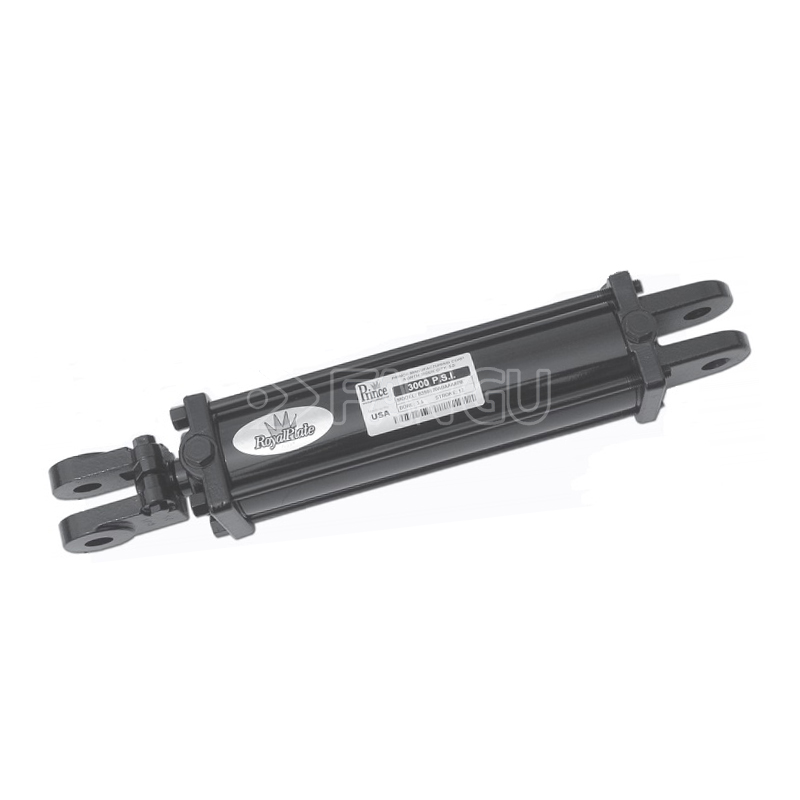

Prince 3 Inch Welded Adjustable Clevis Cylinders 3000 PSI Heavy‑duty Welded Body
Example Models:
- WWCL3004-S
- WWCL3006-S
- WWCL3008-ASAE
- WWCL3010-S
- WWCL3012-S
- WWCL3014-S
- WWCL3016-S
- WWCL3020-S
- WWCL3024-S
- WWCL3036-S
Prince 3000 PSI Welded Adjustable Clevis Cylinders
Product Overview
Prince 3000 PSI Welded Adjustable Clevis Cylinders belong to the Wolverine Series, heavy‑duty double‑acting welded hydraulic cylinders manufactured by Prince Manufacturing (USA). Featuring spin‑on adjustable rod‑end clevis, this design allows quick length adjustment and flexible installation, perfectly adapting to misalignment in mobile machinery, agricultural equipment and general industrial hydraulic systems. With a continuous working pressure of 3000 PSI, it delivers stable bidirectional push‑pull power and long‑term durability.
Key Technical Specifications
- Rated Working Pressure: 3000 PSI (207 bar) continuous & peak pressure
- Bore Sizes: 1.5″ – 4″ standard options
- Stroke Range: 4″ to 48″ (custom strokes available)
- Rod Diameter: Hard‑chrome plated high‑strength steel, matched with bore size
- Port Standard: SAE standard O‑ring boss ports (SAE‑06 / SAE‑08) for leak‑proof high‑pressure connection
- Mounting Style: Adjustable spin‑on clevis (both ends), pins and clips included
- Surface Finish: High‑gloss black anti‑corrosion paint
- Construction: One‑piece heavy‑duty welded body, thread‑in ductile iron gland for easy maintenance
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Cylinder Tube: Precision skived & honed seamless steel tubing, ultra‑smooth inner surface, low friction and high pressure resistance
- Piston Rod: Hard‑chrome plated, ground & polished alloy steel, excellent wear‑resistant and anti‑corrosion performance
- Adjustable Clevis: Cast steel spin‑on clevis fittings, enabling easy length adjustment and flexible angular movement
- Piston & Gland: Ductile iron components with high impact resistance and structural stability
- Seal System:
- Rod side: Urethane U‑cup seal + metal‑encased wiper + wear ring, preventing oil leakage and dust ingress
- Piston side: Teflon crown seal + backup washers
- Standard seal: NBR nitrile rubber; optional FKM (Viton) for salt‑fog, marine and high‑temperature tropical environments
- Quality Assurance: 100% factory pressure‑tested before delivery
Core Advantages
- Adjustable Spin‑on Clevis Design: Flexible length adjustment, eliminates installation misalignment and side‑load binding
- Heavy‑Duty Welded Structure: Compact rigid body, superior anti‑side‑load capacity compared to tie‑rod cylinders
- SAE Standard Ports: Compatible with Danfoss, Parker and other mainstream hydraulic fittings, zero‑leak long‑term performance
- Serviceable Thread‑in Gland: Quick disassembly for seal replacement and on‑site maintenance
- Universal Compatibility: Complies with North American hydraulic standards, widely interchangeable with global hydraulic components
- Corrosion Protection: Gloss black paint and chrome‑plated rod adapt to humid, coastal and Southeast Asian tropical working conditions
Typical Applications
- Agricultural machinery: tractors, log splitters, harvesters and farm lifting equipment
- Light‑medium construction machinery: small loaders, material handling and lifting systems
- General industrial automation and mobile hydraulic power units
- Equipment requiring flexible mounting and bidirectional heavy‑load power output
