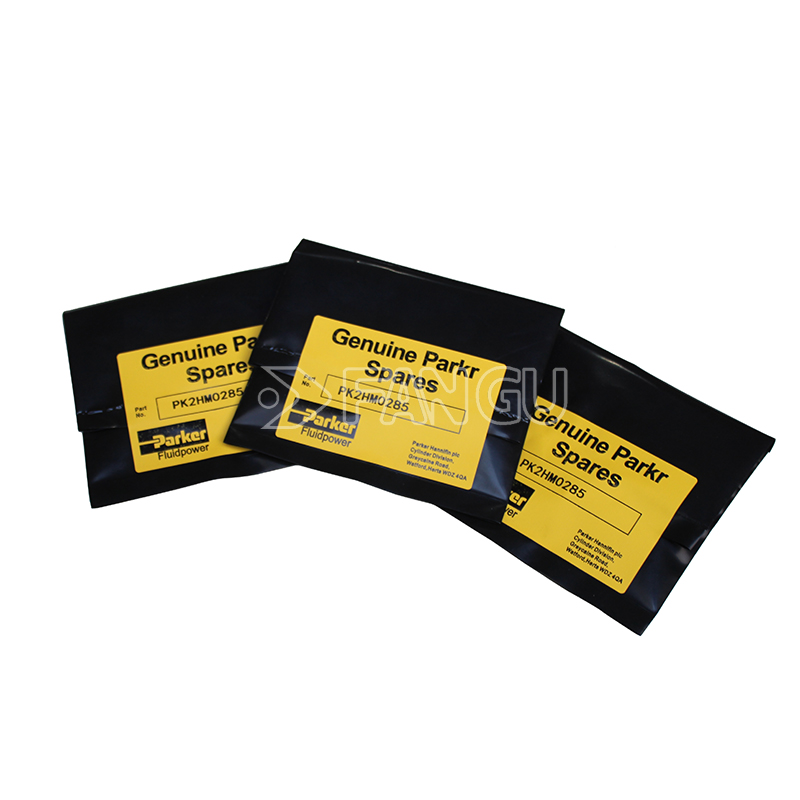

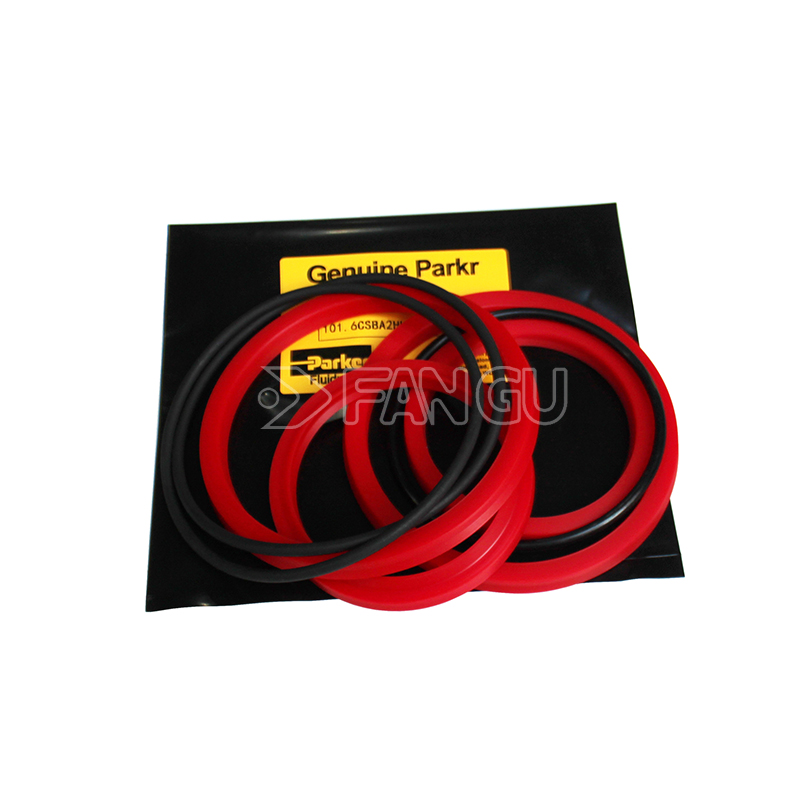

Parker Rod Gland and Rod Seal Kits for Series CHE & CHD Compact Hydraulic Cylinders
Example Models:
CHE-KR100-18
CHE-KR100-22
CHE-KR500-18
CHE-KR500-22
CHE-KR200-18
CHE-KR200-22
CHE-KR300-18
CHE-KR300-22
CHE-KR600-18
CHE-KR600-22
CHE-KR400-18
CHE-KR400-22
Rod Gland and Rod Seal Kits for Series CHE & CHD Compact Hydraulic Cylinders
Product Overview
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
Series CHE
- Cylinder body: Hard anodized aluminum alloy, max operating pressure 140 bar
- Gland material: Zinc-plated nodular iron, standard threaded cartridge gland design
- Application: Light & medium-load automation, sensor-equipped short-stroke positioning cylinders
- Compatible kit range: Rod diameters 16mm ~ 80mm
Series CHD
- Cylinder body: Solid steel block, high pressure resistance up to 207 bar
- Gland material: Reinforced ductile iron with thicker bearing surface for heavy side loads
- Application: Mold clamping, heavy-duty pressing, high-thrust compact hydraulic stations
- Compatible kit range: Rod diameters 20mm ~ 100mm
- Full rod diameter coverage: Matches all standard piston rod sizes of CHE & CHD compact cylinders (16mm–100mm)
- Standard sealing compound: PUR polyurethane with NBR energizer for conventional mineral hydraulic oil; FKM fluorocarbon high-temperature seal kits available on custom request for synthetic fire-resistant fluids
- Superior anti-contamination design: Double-lip wiper prevents abrasive particles entering the cylinder interior, extending piston seal service life
- Self-relieving multi-lip rod seal design automatically adapts to minor shaft deflection and pressure fluctuation, minimizing hysteresis and internal bypass leakage
- RoHS-compliant plating on gland housings provides corrosion resistance against coolant splash and humid workshop environments
- Complete installation instruction manual included in every kit, with gland spanner hole operation guidance for disassembly & assembly
