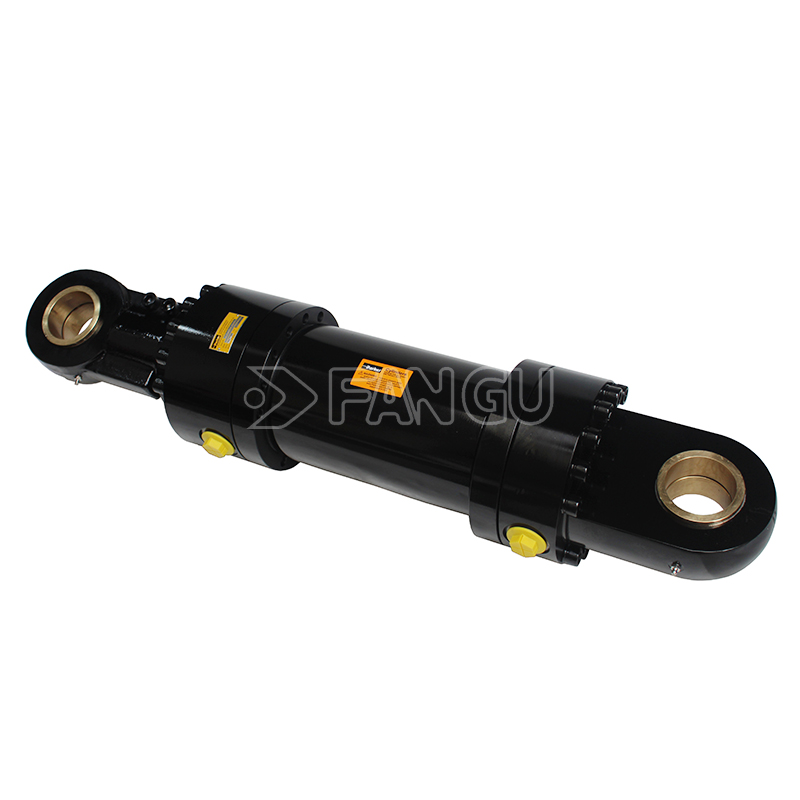

Parker MIMB Series Heavy Duty Hydraulic Cylinders
Product Overview
Parker MIMB Series heavy-duty welded hydraulic cylinders integrate precise position sensing, high structural rigidity and ultra-long service life. Adopting integral forged cylinder barrel, high-strength alloy piston rod and Parker exclusive low-leakage sealing system, it stably bears heavy impact, lateral load and high-cycle continuous operation. Fully compliant with ISO international standards, MIMB series provides reliable linear hydraulic drive for precision machinery and harsh heavy-industry working conditions.
Example models:
Injection Molding
- MIMB50-ST-22-160-M-MC
- MIMB63-SD-28-220-M-MC
- MIMB80-FA-36-320-M-MC
- MIMB100-LA-45-400-M-MC
- MIMB80-FB-36-350-M-MC
- MIMB125-ST-56-500-M-V
Metallurgy & Steel Mills
- MIMB100-C-45-500-M-V
- MIMB125-DB-56-600-M-V
- MIMB160-LA-70-700-M-V
- MIMB200-BB-90-800-M-V
- MIMB160-LD-70-750-M-V
- MIMB200-DD-90-900-M-V
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Rated Working Pressure: 210 bar (3000 psi)
- Structure: Double-acting, single rod, heavy-duty welded construction
- Built-in Magnetic Induction Position Feedback (MIM built-in sensor)
- Bore Range: 40mm ~ 200mm
- Matching Rod Diameters: Customized matching with standard bore specifications
- Stroke Length: Freely customizable up to 3000mm
- Temperature Range: -20℃ ~ +150℃
- Sealing Configuration: Parker TS-2000 high-performance wear-resistant seal package
- Optional Parts: Adjustable end cushions, high-temperature FKM seals, travel limit switches, special oil port arrangements
- Mounting Types: FA, FB, LA, LD, C, ST, SD, BB, DB, DD full-range flange, trunnion, clevis and foot mountings
Machine Tools
Precision fixture clamping, automatic workpiece positioning, sliding platform driving, tool posture adjustment, high-precision indexing and automated fixture switching mechanisms.
Presses
Die opening & closing driving, mold swing positioning, stamping & forging heavy-load actuation, bending machine linear thrust, large die switching and forming pressure control systems.
Injection Molding
Mold clamping power unit, core-pulling linear drive, ejector stroke control, nozzle positioning adjustment, high-speed cyclic mold matching and precise mold ejection mechanisms.
Metallurgy & Steel Mills
Roll gap precise adjustment, continuous casting equipment actuation, furnace door opening/closing control, roller conveying pushing, high-temperature heavy-load linear driving for smelting and rolling equipment.
Steel Mills
Heavy-load roller adjustment, equipment gate switching, billet pushing transmission, high-dust high-temperature stable linear motion and long-cycle repetitive industrial driving units.
Material Handling
Lifting platform lifting & lowering, conveyor directional pushing, automatic loading & unloading positioning, pallet flipping driving, heavy workpiece transmission and logistics automatic positioning mechanisms.
Construction Equipment
Engineering outrigger supporting, arm linear expansion & contraction, mechanical positioning driving, outdoor heavy-load linear actuation and complex outdoor harsh environment hydraulic execution components.
Heavy Industrial Environments
Mining equipment thrust driving, ship hydraulic linear control, power station valve actuation, large automated production line positioning, stable long-cycle operation under high temperature, high dust and strong vibration harsh working conditions.
