Authentic Parker 3L Series Hydraulic Cylinders 3L02014JLHC08.00 3L04024JHHC16.00 3L03214JLHN12.00 3L04024HBLHC12.00 3L03014BBLHC10.00 in Stock Multiple Applications

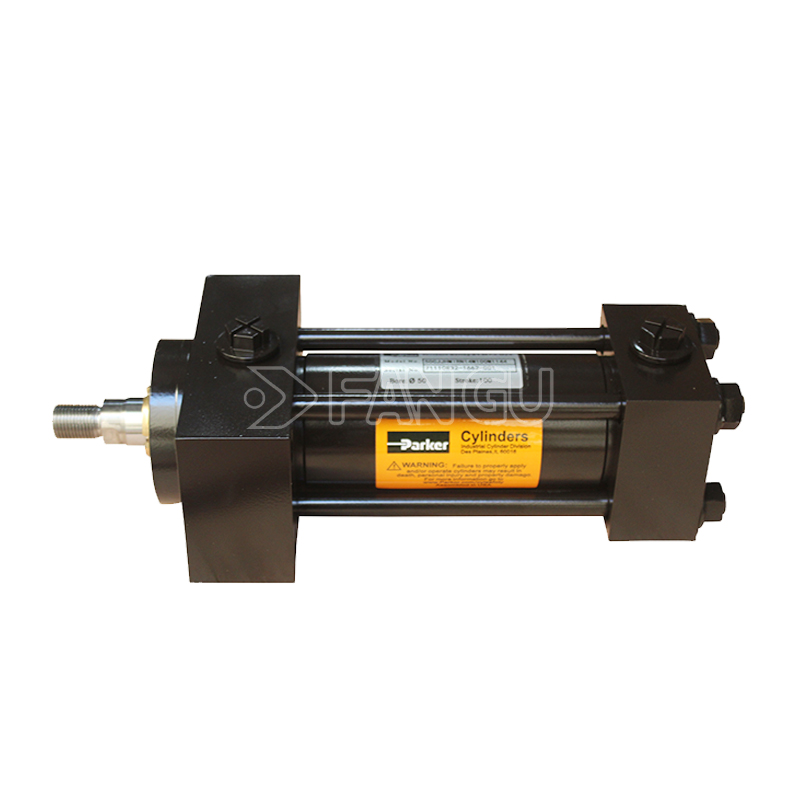

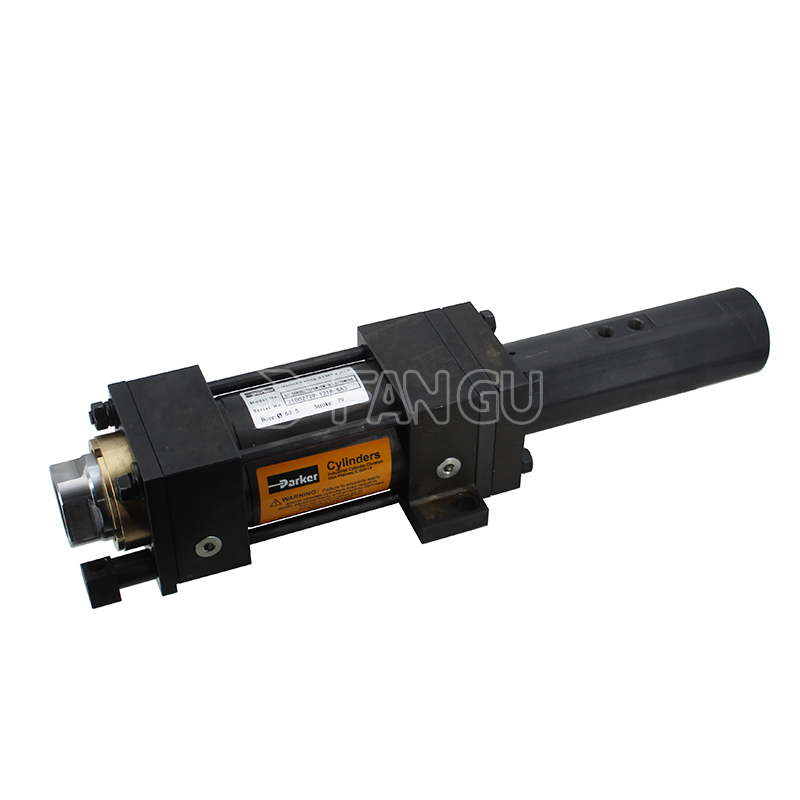

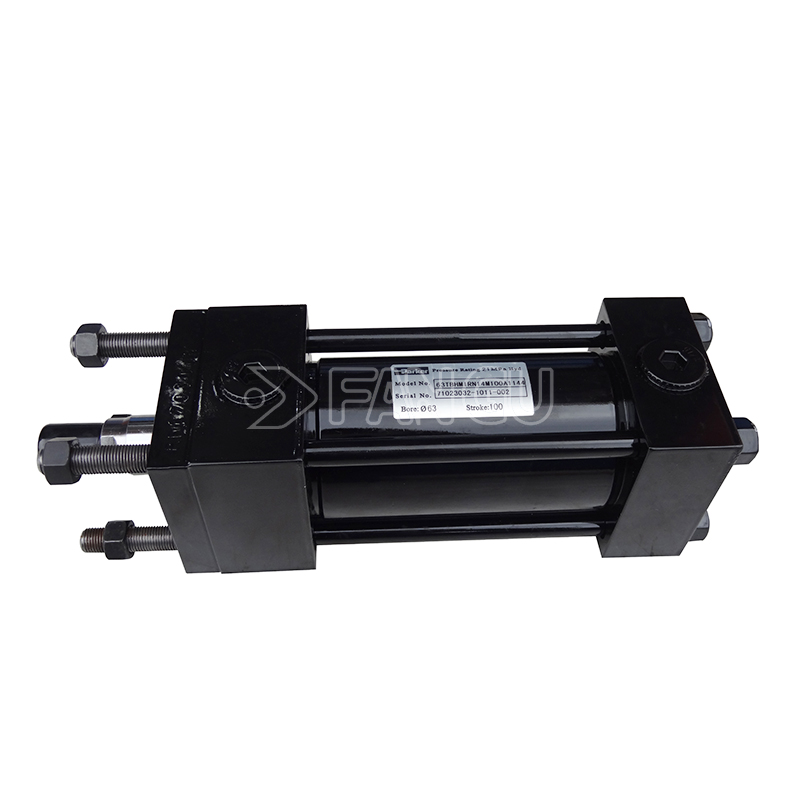

Parker 3L Series Hydraulic Cylinders
The Parker 3L Series is a medium-duty, tie-rod hydraulic cylinder conforming to ANSI B93.15-1987 and NFPA standards, engineered for reliable performance in general industrial environments. It features a robust four-tie-rod construction, exclusive “Jewel Gland” with TS‑2000 rod sealing, and configurable cushioning to suit diverse operational needs.
Main models:
- 3L02014JLHC08.00
- 3L04024JHHC16.00
- 3L03214JLHN12.00
- 3L04024HBLHC12.00
- 3L03014BBLHC10.00
- 3L03017JLHC10.00
- 3L08057HBLHC30.00
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
Durable Tie‑Rod Construction
- Four‑tie‑rod design with rolled threads for enhanced fatigue resistance and structural integrity, outperforming cut‑thread alternatives.
- Square-end body for consistent alignment and load distribution in medium-duty applications.
- Heavy-wall steel tube resists pressure surges and mechanical shock, ensuring long service life.
Premium Sealing System (Jewel Gland & TS‑2000)
- Exclusive Jewel Gland Assembly with TS‑2000 rod seal: Self-compensating, self‑relieving design that maintains zero leakage and accommodates mechanical misalignment.
- Dual Wiperseal™ Wiper: Cleans the rod on both extend/retract strokes to prevent contamination and extend seal life.
- LipSeal Piston: Ensures efficient power transfer with low friction and minimal drift, ideal for cyclic loads.
Configurable Cushioning
- Adjustable floating cushion (cartridge‑style needle valve) for precision end‑stroke deceleration.
- Options: None (N), cap‑end only (H), head‑end only, or both ends (C).
- Reduces impact noise, protects equipment, and extends component lifespan in high‑cycle operations.
Robust Components
- Case‑hardened, hard-chrome plated rod: Resists wear, corrosion, and scoring in harsh environments.
- Piston‑rod connection: Pre‑stressed thread with O‑ring + anaerobic adhesive for leak‑proof, high‑fatigue life joints.
- Universal piston design: Compatible with multiple seal types (HP, KP, RP, WP) for fluid compatibility and temperature flexibility.
- General manufacturing & material handling
- Clamping, fixtures, and press auxiliary systems
- Food & beverage processing (sanitary-ready options available)
- Agricultural & construction machinery (medium-load scenarios)
- Automotive assembly lines & test stands
- Marine & offshore (with corrosion-resistant upgrades)
