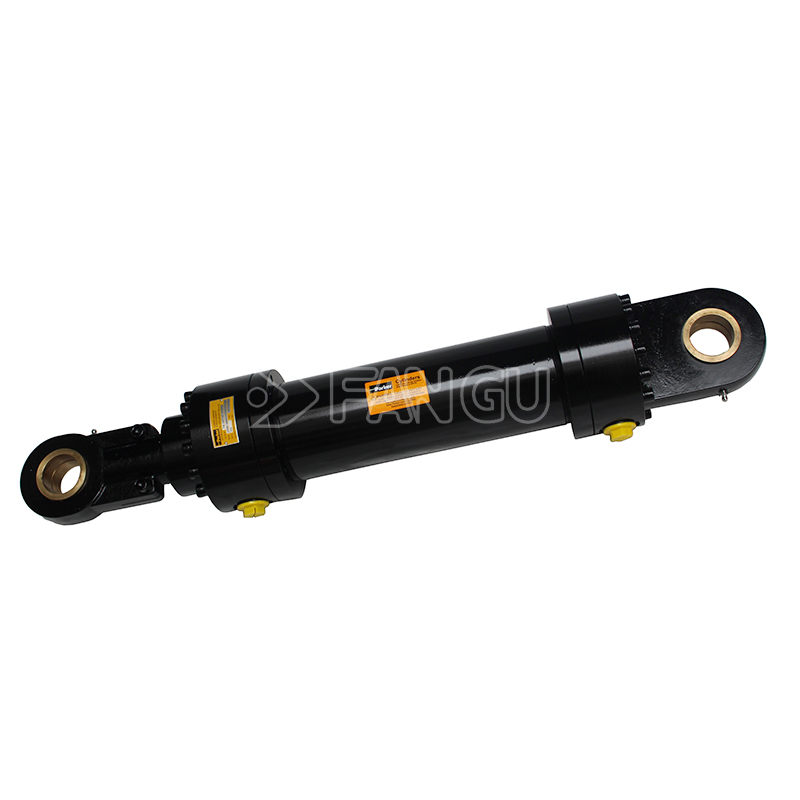

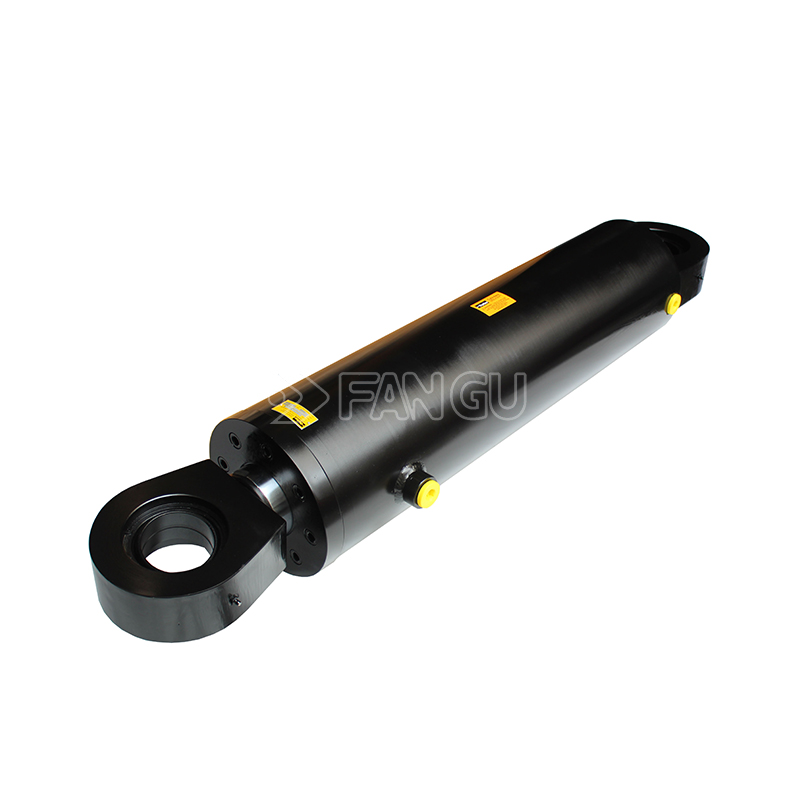

Parker LA Series Hydraulic Cylinders
Product Overview
The Parker LA Series are light-to-medium duty, tie-rod construction hydraulic cylinders, designed for cost-effective, reliable performance in general industrial applications. They represent Parker’s economical solution for standard-duty cycles where high performance and easy maintenance are required.
Example Models:
- LA03.5C030A0A1
- LA04.0C036A0A1
- LA05.0C048A0A1
- LA06.0C060A0A1
- LA50B200A1A1
- LA63D250A3B1
- LA06.0C060A0A1
- LA50B200A1A1
- LA63D250A3B1
- LA80J300M0C1
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Tie-Rod Design: Standard four-tie-rod construction for robust structural integrity and easy disassembly for maintenance or seal replacement.
- Versatile Performance: Engineered for double-acting operation, suitable for a wide range of linear motion tasks.
- High-Quality Components:
- Piston Rod: Hard-chrome plated steel for excellent wear, corrosion resistance, and extended seal life.
- Cylinder Tube: Precision-honed and polished ID for optimal seal performance and smooth piston movement.
- Parker Seals: Equipped with Parker's proprietary low-friction, long-life seal system to prevent leaks and ensure consistent performance.
- Compact & Economical: Cost-efficient design ideal for budget-conscious projects without compromising Parker quality.
- Broad Compatibility: Adheres to common industrial standards, offering interchangeability with NFPA/ANSI dimensions for easy integration.
- Customizable Options: Available with optional cushions (cap end, head end, or both), various port sizes (NPT, BSPP), and rod ends (threaded, clevis).
- Series Type: LA (Light-Duty Tie-Rod Hydraulic Cylinder)
- Operation: Double-Acting (Standard)
- Nominal Pressure: Up to 210 bar (3000 psi) (depending on bore size)
- Bore Sizes (Imperial & Metric):
- Imperial: 1.5", 2", 2.5", 3", 3.5", 4", 5", 6"
- Metric: 25 mm, 32 mm, 40 mm, 50 mm, 63 mm, 80 mm, 100 mm
- Stroke Lengths: Custom strokes available from 25 mm (1") up to 3000 mm (118")
- Temperature Range: Standard: -20°C to +80°C (-4°F to +176°F)
- Fluid Compatibility: Mineral oil, synthetic fire-resistant fluids (HFC, HFD)
- Mounting Styles: Multiple standard NFPA/ANSI mounting configurations (Foot, Front Flange, Rear Flange, Trunnion, Clevis, etc.)
- Port Threads: Standard NPT (BSPP, SAE optional)
