Yuken CJT35 FANGU OEM Tie-rod Stable Low-speed Performance High Positioning Accuracy Hydraulic Cylinders
The CJT35 Series is a line of 3.5 MPa nominal pressure tie-rod hydraulic cylinders designed by YUKEN for general-purpose industrial machinery, particularly machine tools. It features stable low-speed performance, high positioning accuracy, and versatile mounting options, making it suitable for a wide range of automated and machining applications.

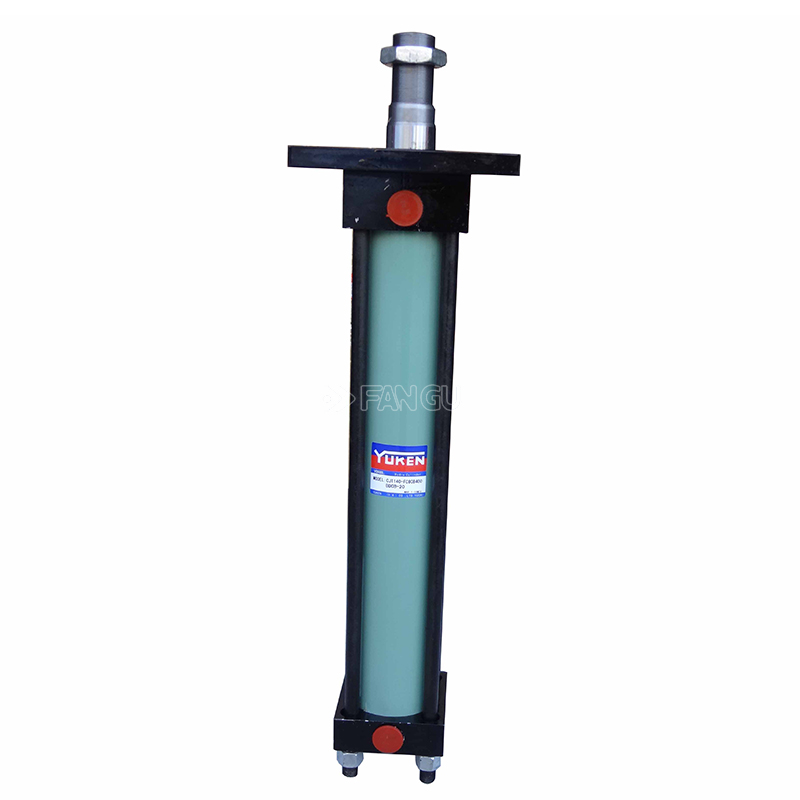

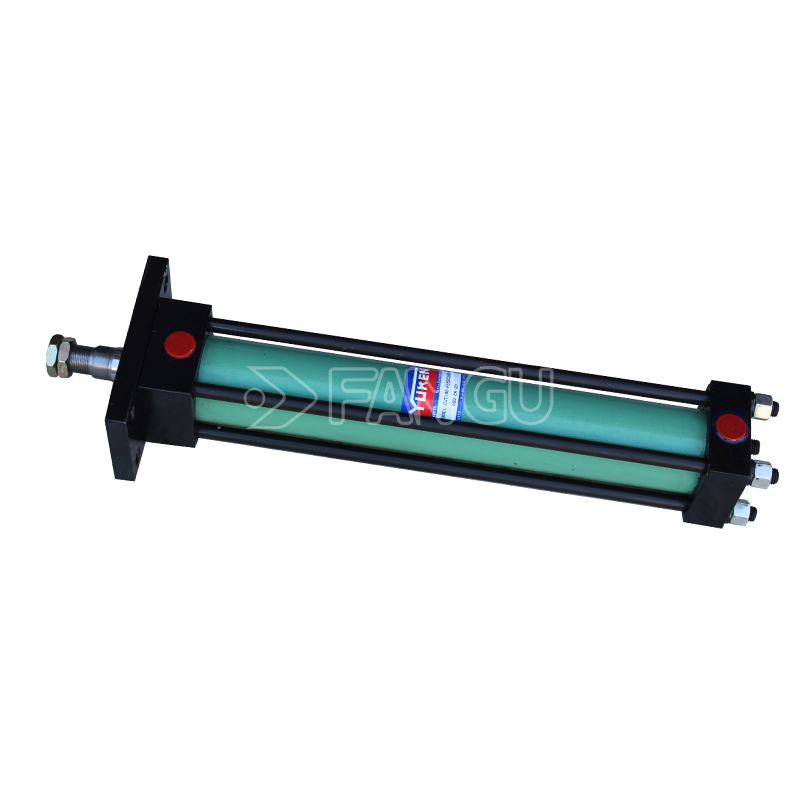

Yuken CJT35 Series Tie-rod Hydraulic Cylinders
Product Introduction
The CJT35 Series is a line of 3.5 MPa nominal pressure tie-rod hydraulic cylinders designed by YUKEN for general-purpose industrial machinery, particularly machine tools. It features stable low-speed performance, high positioning accuracy, and versatile mounting options, making it suitable for a wide range of automated and machining applications.
Example Models:
- CJT35-FA40-250-B-30
- CJT35-FB50-350-N-30
- CJT35-FA80-500-B-30
- CJT35-FB125-900-B-30
- CJT35-TA50-300-B-30
- CJT35-TC80-600-N-30
- CJT35-TA125-800-B-30
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Low-Speed Stability: Ensures smooth, precise operation at 8–300 mm/s, ideal for machining and positioning tasks.
- Versatile Mounting: 9 standard mounting configurations for flexible installation in diverse machine layouts.
- Position Detection Ready: Accepts slide-type proximity switches on the cylinder body for easy position sensing (CJT35L switch-set version available).
- Reliable Sealing: Standard nitrile rubber seals; optional fluororubber (F) or hydrogenated nitrile (6) for harsh conditions.
- Adjustable Cushioning: Built-in cushion valves (rod side, cap side, or both) to absorb impact at stroke ends.
