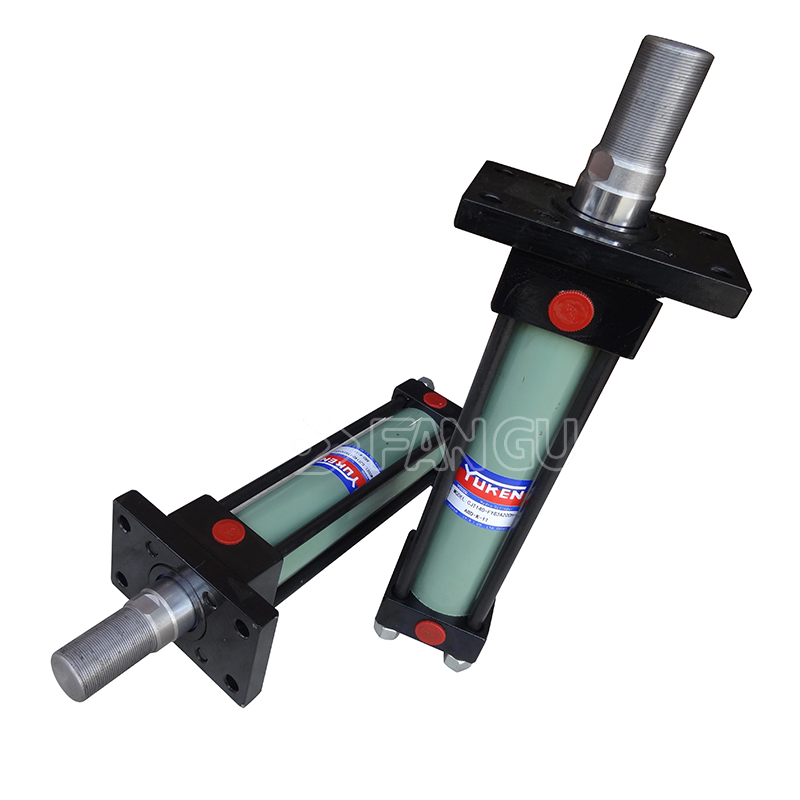

YUKEN CE Series Mini Compact Standard Double-acting Tie-rod Hydraulic Cylinders
Example Models:
- CEFA-25-100-140B
- CEFA-32-150-140B
- CEFA-40-200-140B
- CEFA-50-250-140B
- CEFA-63-300-140B
- CEFB-25-100-140B
- CEFB-32-150-140B
- CEFB-40-200-140B
- CEFB-50-250-140B
- CEFB-63-300-140B
YUKEN CE Series Mini Compact Standard Hydraulic Cylinders
Product Introduction
YUKEN CE Series is ultra-small, compact double-acting tie-rod standard hydraulic cylinders, specially designed for narrow-space precision clamping, small-stroke positioning and miniature automation equipment. With mini bore size, short overall length, high precision and stable action, it fully complies with JIS & ISO standards, and is the mainstream miniature cylinder for small machinery, precision fixtures and automated small-stroke linear motion systems.
Example Models:
- CEFA-25-100-140B
- CEFA-32-150-140B
- CEFA-40-200-140B
- CEFA-50-250-140B
- CEFA-63-300-140B
- CEFB-25-100-140B
- CEFB-32-150-140B
- CEFB-40-200-140B
- CEFB-50-250-140B
- CEFB-63-300-140B
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
Key Features
- Ultra-compact mini body, minimal installation space, ideal for small precision equipment
- Precision adjustable end cushion, smooth start & stop, low impact and stable positioning
- High-quality low-leakage seal group, long service life and reliable high-frequency operation
- Diversified mounting options, easy pipeline connection and equipment assembly
- Light weight, high force-to-volume ratio, accurate linear motion control
- Fully interchangeable with international miniature hydraulic cylinder interfaces
Typical Applications
- Precision machine tool small fixtures & clamping mechanisms
- Small automation manipulator short-stroke push-pull motion
- Miniature valve station switching & small-angle positioning
- Electronic equipment, testing machinery and compact hydraulic units
- Light-duty automated production line precision positioning cylinders
