YUKEN CBY14 Series Ultra-Thin Compact Hydraulic Cylinders
Product Introduction

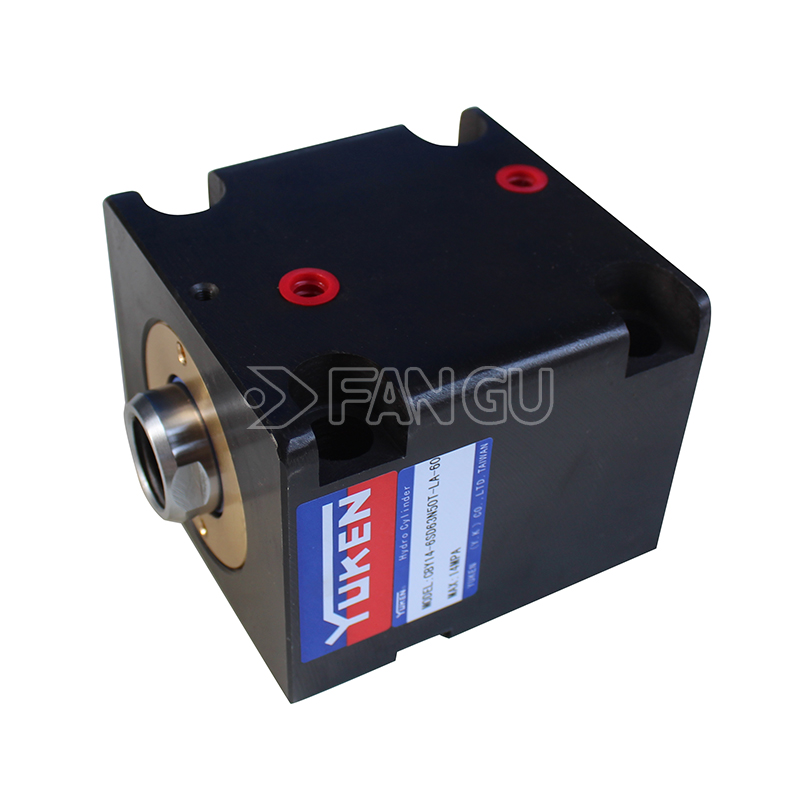

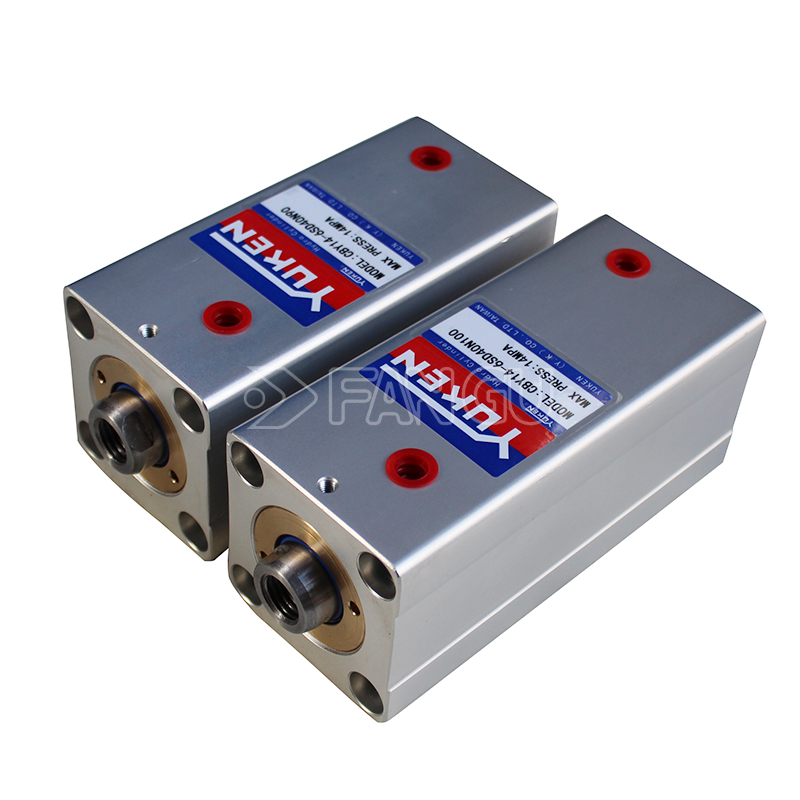

YUKEN CBY14 Series is ultra-short thin-type integrated hydraulic cylinders, the overall length is only 1/3 of conventional tie-rod cylinders, specially designed for narrow-space precision clamping & compact automation systems. Adopts integrated cylinder barrel & end cover structure, lightweight aluminum alloy body, JIS standard compliant, supports single-rod/double-rod double-acting design, optional proximity position switches, widely used in CNC fixtures, automated machinery, precision clamping and limited-space hydraulic equipment.
Part Example Models:
- CBY14-SD32-50-N-14
- CBY14L-SD40-100-B-N11
- CBY14-SD50-150-N-14
- CBY14L-SD63-200-B-N51
- CBY14N-SD80-80-N-14
- CBY14-FA32-80-B-14
- CBY14L-FA40-120-N-N11
- CBY14-FA50-180-B-14
- CBY14L-FA63-250-B-N51
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
Key Features
- Ultra-short compact size: 1/3 shorter length than standard cylinders, perfect for tight & limited installation space
- Lightweight aluminum integrated body, no tie-rod structure, neat appearance & high structural rigidity
- Special copper alloy piston & rod bushing, excellent wear resistance, stable high-frequency reciprocating operation
- Easy maintenance: Replace seals without disassembling cylinder body and oil pipelines
- Optional magnetic proximity switches, accurate automatic stroke position feedback & intelligent control
- Low leakage precision sealing group, stable action, low impact, long continuous working life
- Diversified bore, stroke, mounting & rod types, fully customized matching various precision equipment
Typical Applications
- CNC machine tool precision small clamping fixtures
- Narrow-space automatic manipulator push-pull mechanisms
- Mold quick clamping & switching hydraulic units
- Miniature automated production line positioning cylinders
- Special compact hydraulic equipment with strict space restrictions
