ROEMHELD B1.5401 Double-acting Built-In Hydraulic Cylinder Elements Piston and Threaded Bushing
Example Models:
- 0154110 B1.5401-16
- 0154111 B1.5401-16
- 0154310 B1.5401-25
- 0154410 B1.5401-32
- 0154510 B1.5401-40
- 0154611 B1.5401-50
- 0154710 B1.5401-63
- 0154810 B1.5401-80
- 0154911 B1.5401-100
Product Introduction of ROEMHELD B1.5401 Built-In Hydraulic Cylinder Elements
Product Overview

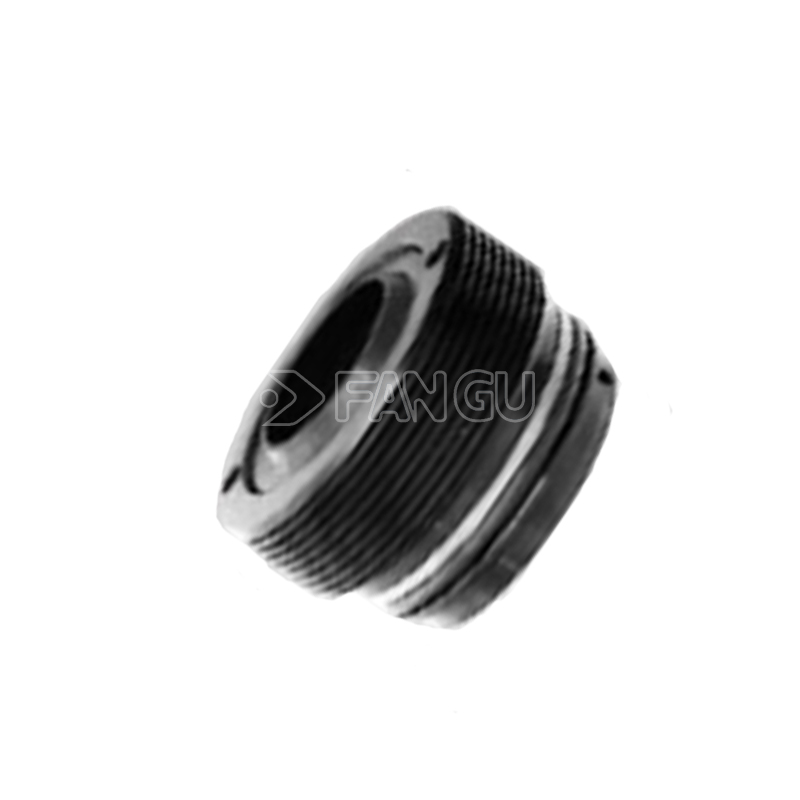

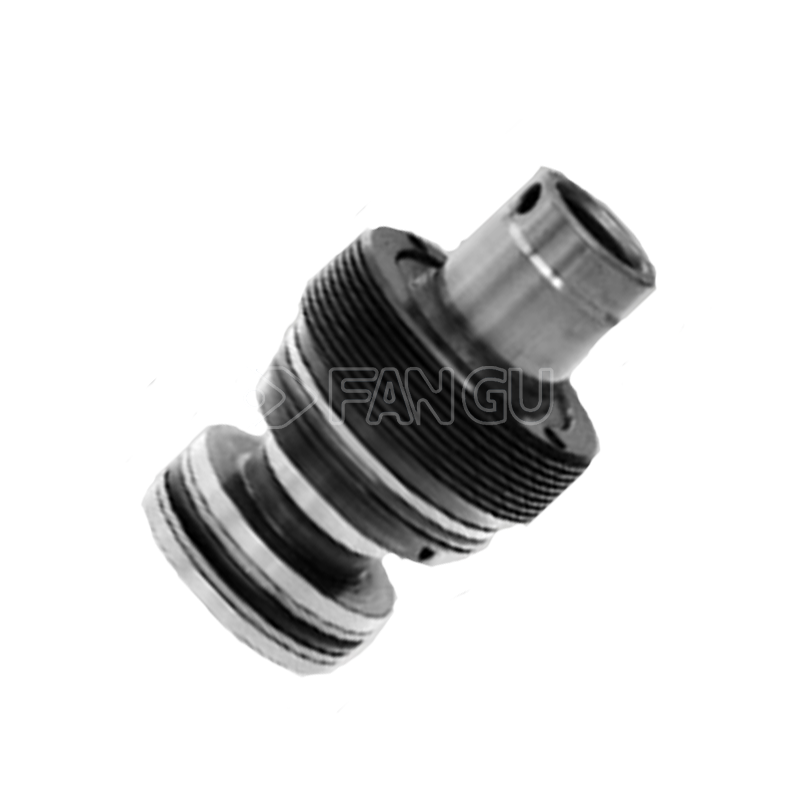

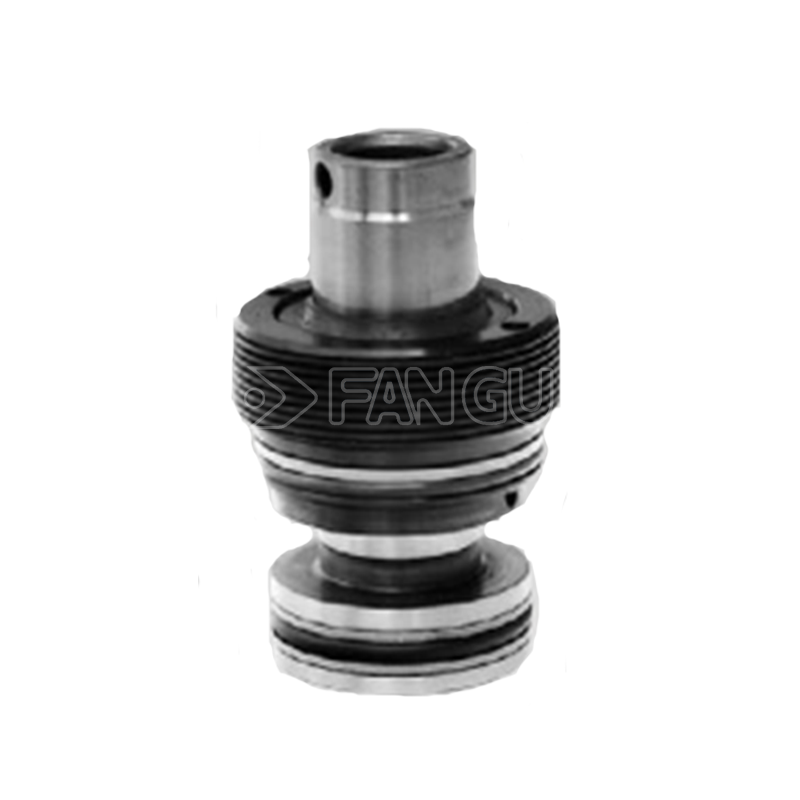

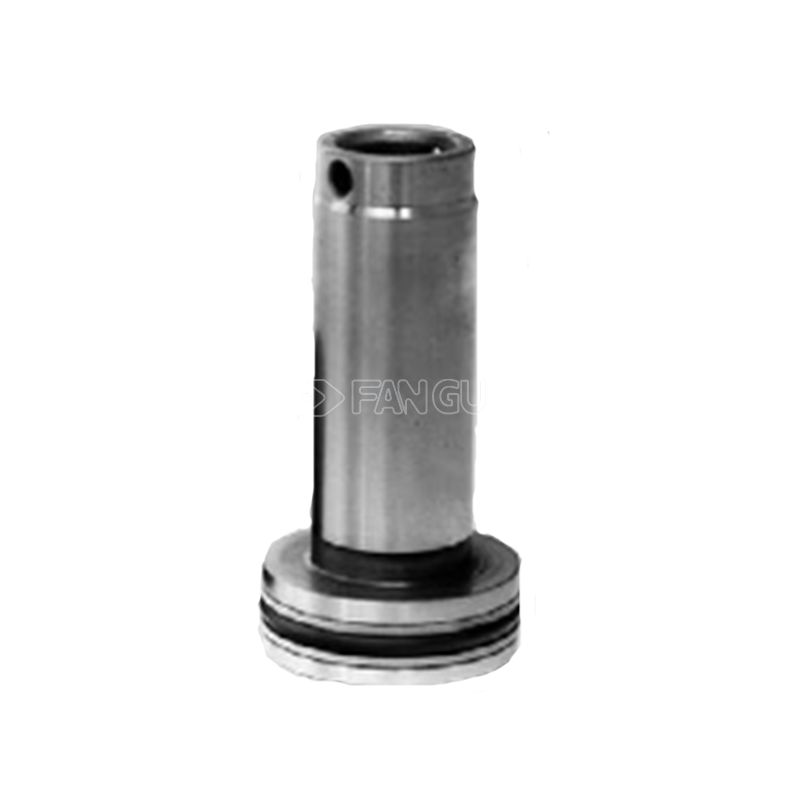

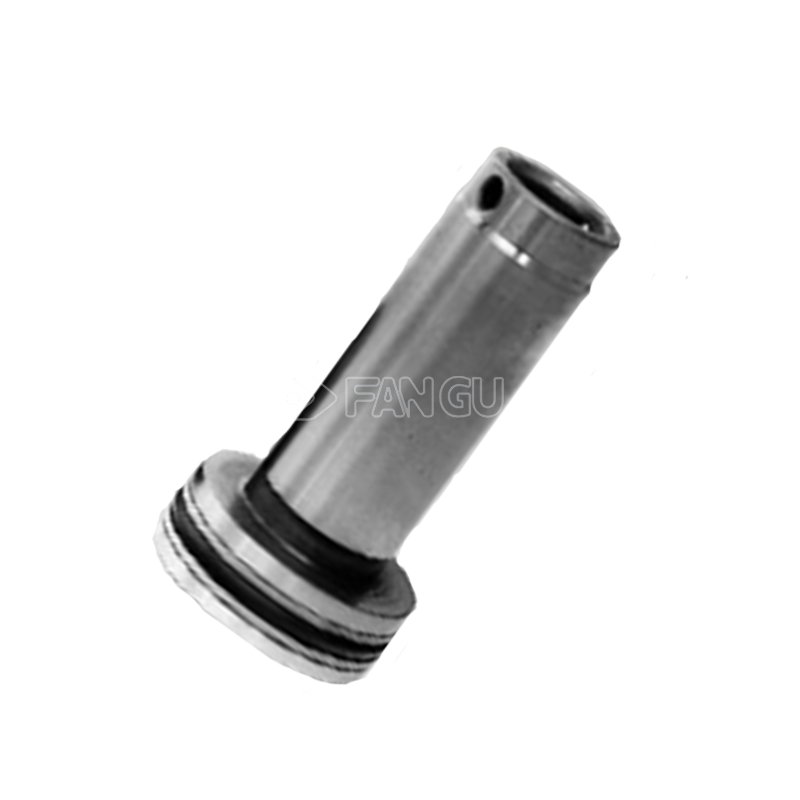

The ROEMHELD B1.5401 consists of double-acting built-in hydraulic cylinder elements (piston assembly + threaded lock bushing complete with sealing sets), rated for a maximum operating pressure of 500 bar.

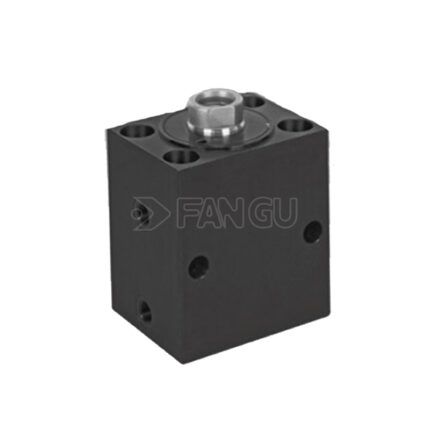

Unlike standard pre-assembled block cylinders with finished housings, B1.5401 is designed to be directly embedded and installed inside custom-machined fixture bodies. Users machine mounting bores and internal hydraulic oil passages within the tooling, then fit the piston and screw in the threaded retaining bushing to form a complete hydraulic cylinder. The finished unit can perform both pushing and pulling clamping movements.
No built-in position sensor grooves or sensor interfaces are provided.
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Operation Type: Double-acting hydraulic drive (hydraulic extend + hydraulic retract)
- Max Rated Operating Pressure: 500 bar
- Standard Piston Bore Sizes: Ø25 / Ø32 / Ø40 / Ø50 / Ø63 / Ø80 / Ø100 mm
- Standard Stroke Range: 16 / 25 / 40 / 50 / 100 mm
- Installation Method: Embedded inside fixture machined bore; sealed threaded retaining bushing
- Stroke Cushion: No built-in stroke end cushioning
- Position Monitoring: No dedicated sensor mounting provisions
- Standard Sealing: NBR (-20 °C ~ +80 °C)
- Optional Sealing: FKM/Viton high-temperature chemical-resistant seals (-20 °C ~ +120 °C)
- Rod End: Internal female metric thread for interchangeable contact bolts
- Structure Composition: Piston assembly + threaded lock bushing + full sealing kit
Fully Embedded Compact Layout
No external cylinder housing. All components are installed inside the fixture body, maximizing available machining space and improving chip removal. Ideal for densely arranged multi-point clamping layouts.
Integrated Low-Leakage Sealing Package
Two independent rod sealing stages achieve minimal internal leakage. The external rod wiper prevents contamination ingress, and the O-ring/back-up ring combination reliably seals the threaded bushing mounting interface.
Bidirectional Push & Pull Function
Double-acting design enables controllable clamping force in both extension and retraction directions, supporting both push-type clamping and pull-type workpiece retention.
Flexible Custom Fixture Integration
Customers freely define oil passage routing inside the fixture body. No external hose connections are required, reducing leakage points and simplifying fixture surface layout.

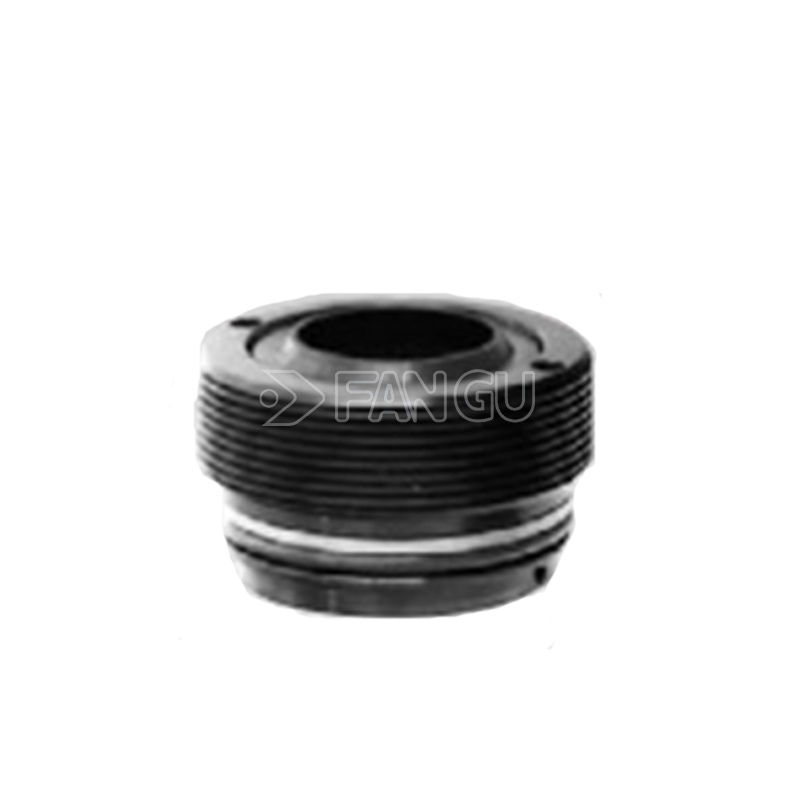

Flush Mounted Threaded Bushing
The retaining bushing installs flush with the fixture surface, avoiding protruding structures that risk collision with cutting tools or workpieces. Assembly is completed via standard pin-type face spanner.
