Rexroth CGH1 Series Hydraulic Cylinder (Double Rod, Mill-Type) CGH1 MT4/125/70/500A3X/B1CGDMWW CGH1 MS2/160/90/600A3X/B1CGDMWW CGH1 MF3/200/110/800A3X/B2CGDMWW CGH1 MT4/250/140/1000A3X/B2CGDMWW
Rexroth CGH1 Series Hydraulic Cylinder (Double Rod, Mill-Type)
General Description

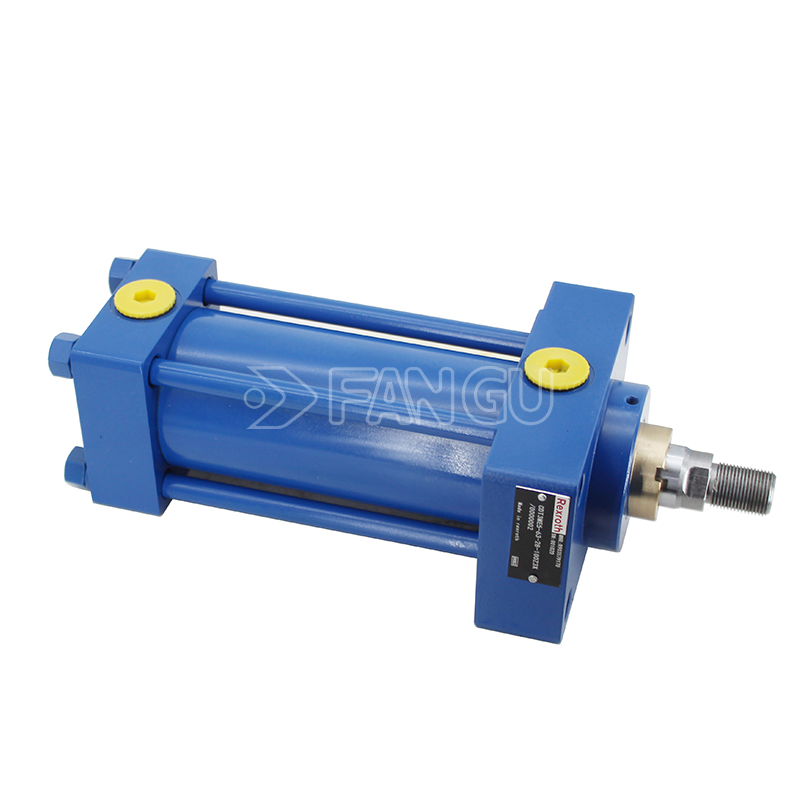

The Rexroth CGH1 is a double-ended (double rod), double-acting, mill-type (heavy-duty) hydraulic cylinder from Bosch Rexroth. It is the symmetric counterpart to the single-rod CDH1 series, designed for applications requiring equal force and speed in both extension and retraction directions. Built to DIN ISO 3320 standards, it features a robust bolted construction and is available in component series 1X, 2X, and 3X.
Example Models:
CGH1 MT4/125/70/500A3X/B1CGDMWWCGH1 MS2/160/90/600A3X/B1CGDMWWCGH1 MF3/200/110/800A3X/B2CGDMWWCGH1 MT4/250/140/1000A3X/B2CGDMWW
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Design: Double rod, double-acting, mill-type (bolted head and base)
- Nominal Pressure: 250 bar (25 MPa)
- Static Test Pressure: 375 bar (1.5 x nominal pressure)
- Piston Diameter: 40 mm up to 320 mm
- Piston Rod Diameter: 22 mm up to 220 mm (equal on both sides)
- Maximum Stroke: Up to 6,000 mm (6 meters)
- Standard Mounting Types: MF3, MT4, MS2
- Cushioning: Self-adjusting end-position cushioning (standard) or adjustable cushioning
- Seal Options: Compatible with mineral oil, HFA, HFC, HFD-R fluids
- Rod Surface: Standard hard chrome-plated; optional special coatings
- Port Connections: Flexible port positions (ISO 1179-1 / ISO 228-1 threads)
- Safety: Patented safety bleeding device
- Compliance: ISO 6020-1, DIN 24333
CGH1 MF3 / 100 / 56 / 500 A3X / B1CGDMWW
CGH1: Series (Double rod)
MF3: Mounting (Front flange)
100: Piston Ø (mm)
56: Rod Ø (mm)
500: Stroke (mm)
A3X: Pressure (250 bar) & Component series (3X)
B1CGDMWW: Options (ports, seals, cushioning, etc.)
