Parker TAIYO 70H-8 Series Hydraulic Cylinders

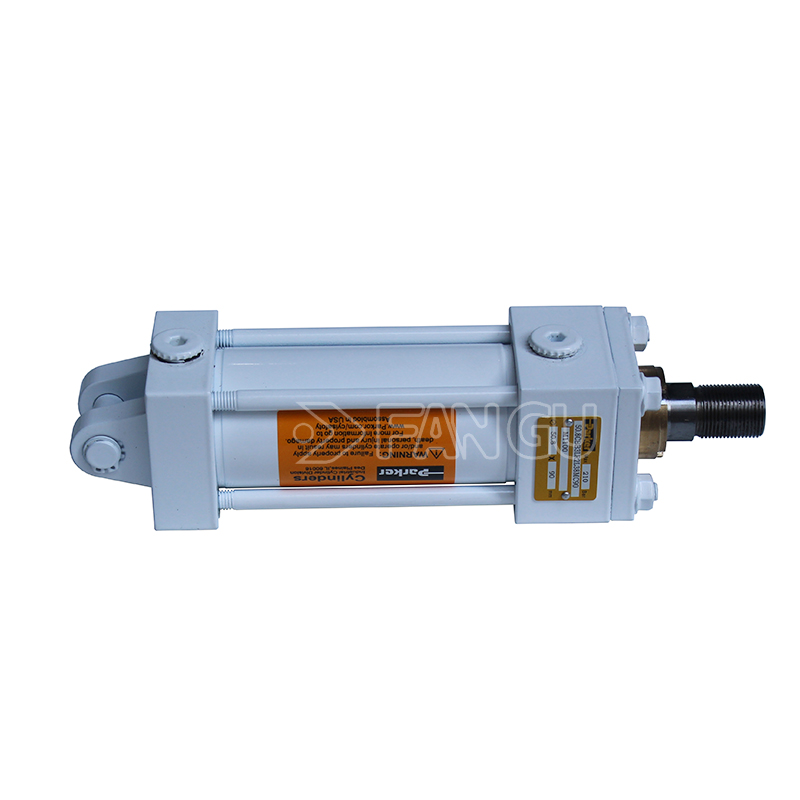

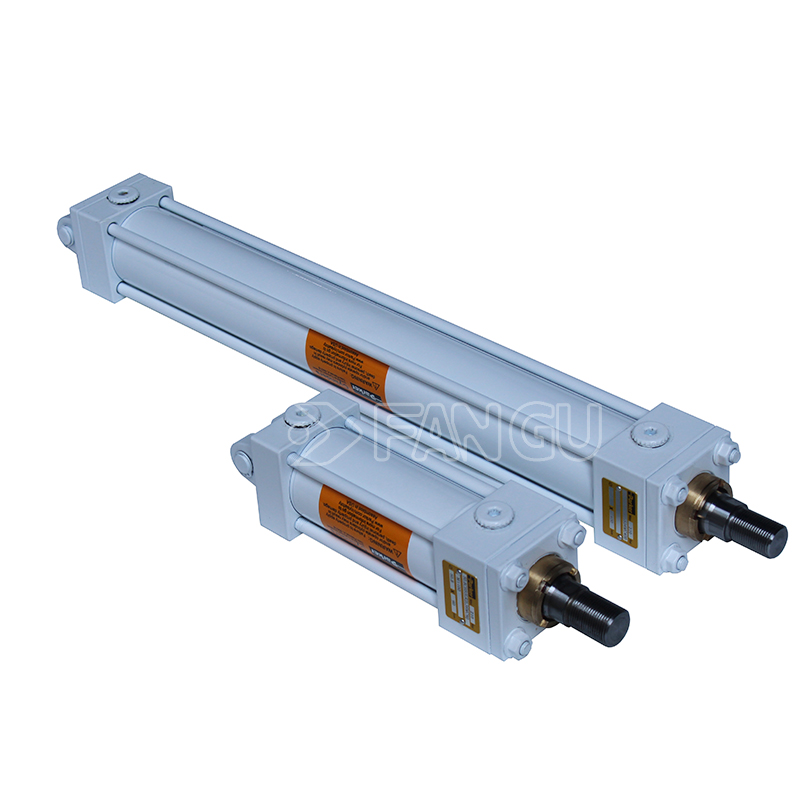

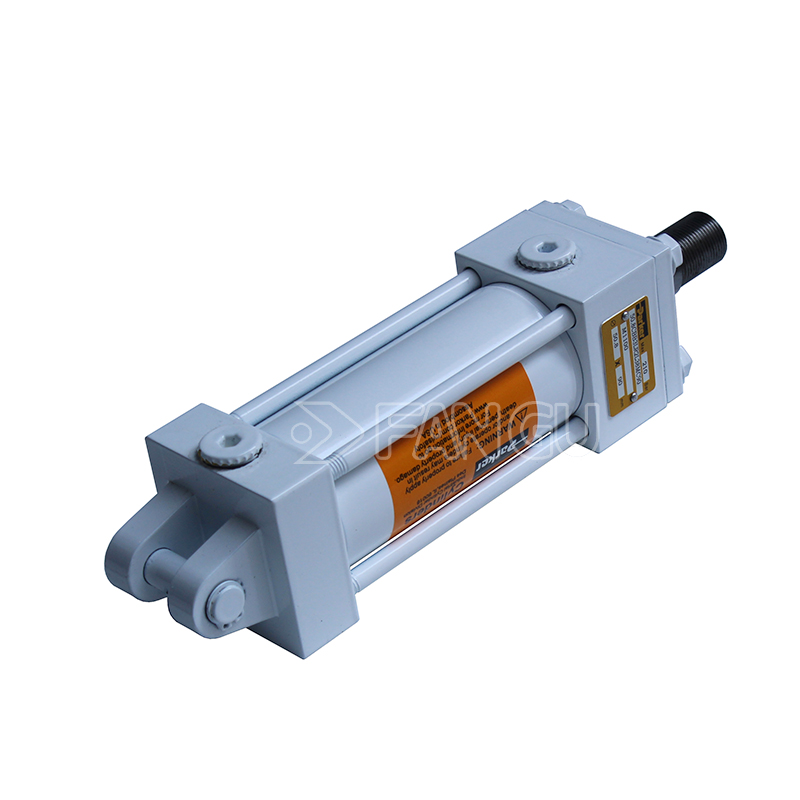

TAIYO 70H-8 is a 7 MPa (70 bar) rated, double-acting, tie-rod type hydraulic cylinder by Parker TAIYO (Japan). It is a general-purpose industrial cylinder designed for standard automation and machinery applications, featuring a robust build, high-performance cushioning, and extensive mounting versatility.
Example Models:
- 70H-8FA32BB100-ABAH2
- 70H-8MC63CB200-ABAH2
- 70H-8TC80BB300-ABAH2
- 70H-8RLB100CB500-ABAH2
- 70H-8FA125CB800-ABAH2
- 70H-8MD160CB1000-ABAH2
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Series: 70H-8 (7 MPa standard pressure)
- Type: Double-acting, single rod / double rod (optional)
- Nominal Pressure: 7 MPa (70 bar)
- Bore Diameters (mm): 32, 40, 50, 63, 80, 100, 125, 140, 150, 160, 180, 200, 224, 250
- Standard Stroke: Up to 2000 mm (customizable)
- Operating Temperature: -10°C to +80°C
- Standard Seals: Nitrile rubber (NBR). Fluororubber (FKM) and other options available
- Tube Material: Carbon steel
- Standards: Compliant with JIS B 8367 standards
High-Performance Built-in Cushion
- Standard adjustable cushions at both ends (cap and rod side) to reduce end-of-stroke shock.
- Newly designed cushion valve for easy and precise adjustment.
- Valve equipped with anti-drop mechanism & locknut for safety and to prevent loosening.
- U-groove cushion ring design ensures stable cushioning performance across varying oil temperatures
Versatile Mounting & Configuration
- Standard adjustable cushions at both ends (cap and rod side) to reduce end-of-stroke shock.
- Newly designed cushion valve for easy and precise adjustment.
- Valve equipped with anti-drop mechanism & locknut for safety and to prevent loosening.
- U-groove cushion ring design ensures stable cushioning performance across varying oil temperatures
Versatile Mounting & Configuration
- Cutting-oil resistant specification as standard, ideal for machine tool environments.
- High-grade anti-abrasion copper alloy rod bushing for extended service life.
- Optimized seal housing design for easier assembly/disassembly.
Switch Compatibility (70H-8R)
- Magnetic proximity switch ready (standard for bores up to φ150).
- Uses compact, common-series switches (e.g., AX205, AX211) for simplified maintenance.
