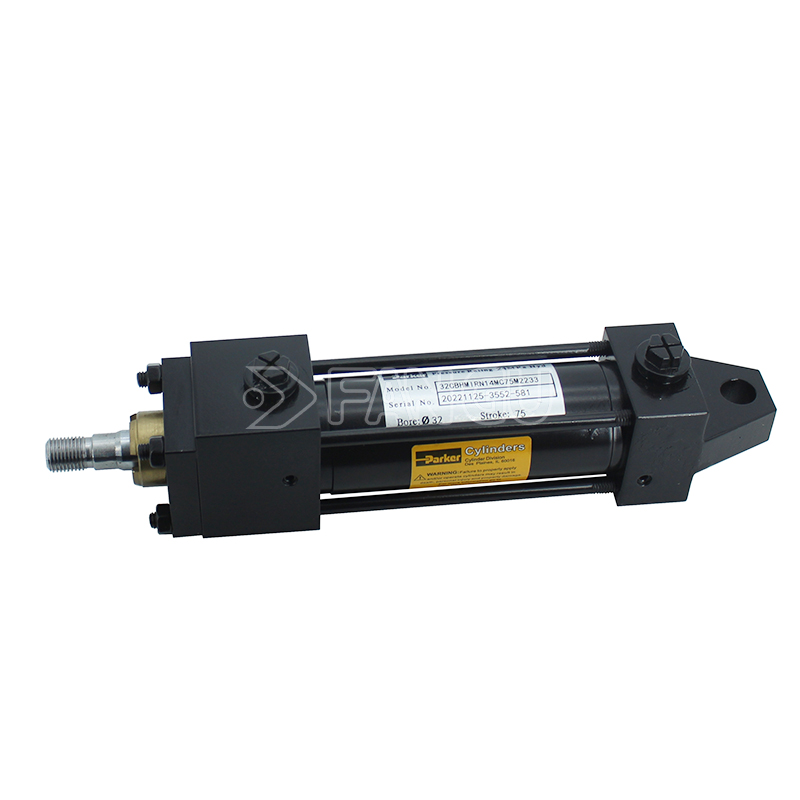

Parker RGL Series Hydraulic Cylinders
The Parker RGL Series is a heavy-duty, industrial hydraulic cylinder engineered for exceptional durability, precision performance, and reliable operation in the most demanding industrial environments. Designed for high-pressure, high-cycle applications, the RGL Series combines robust construction, advanced sealing technology, and precision manufacturing to deliver superior linear motion and force for critical machinery.
Example models (Material Handling)
- RGL-040-ST-18-150-M-MC
- RGL-040-SD-18-200-M-MC
- RGL-050-ST-22-250-M-MC
- RGL-050-SD-22-300-M-MC
- RGL-063-C-28-350-M-MC
- RGL-063-DB-28-400-M-MC
- RGL-080-C-36-450-M-MC
- RGL-080-DB-36-500-M-MC
- RGL-100-FA-45-550-M-MC
- RGL-100-FB-45-600-M-MC
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Design Standard: Heavy-duty industrial design, compliant with ISO 6020/2 and CETOP RP58H standards
- Rated Pressure: Up to 250 bar (3625 psi) (standard), high-pressure variants available
- Bore Sizes: Metric range from 40 mm to 200 mm
- Stroke: Customizable to any practical length
- Construction: Double-acting, single rod design; tie-rod & welded construction for maximum strength
- Materials:
- Cylinder Tube: Precision-honed, high-strength carbon steel
- Piston Rod: Induction-hardened, high-chrome plated steel (wear & corrosion resistant)
- Pistons: High-strength cast iron or steel with precision grooves
- Sealing System: Parker’s premium RGL Glyd Ring™ + NBR/PTFE seal package – low friction, zero leakage, long service life
- Temperature Range: Standard -20°C to +100°C, compatible with mineral oils & synthetic fluids
- Buffers: Optional adjustable cushions (rod end, head end, or both) to absorb end-of-stroke shock
- Mounting Styles: Full range including FA, FB, LA, LD, SD, ST, C, BB, DB, DD (foot, flange, trunnion, clevis)
- Extreme Heavy-Duty Durability: Reinforced design withstands high shock loads, side loads, and continuous high-cycle operation
- Leak-Proof Performance: Multi-stage, precision-machined sealing system eliminates internal/external leakage
- Low Friction & High Efficiency: Advanced PTFE-based seals reduce drag, minimize energy loss, and prevent stick-slip
- Long Service Life: Premium materials & precision manufacturing reduce wear, extend maintenance intervals
- Precision Movement: Smooth, stable operation with minimal hysteresis for accurate positioning
- Flexible Configuration: Wide bore/rod/stroke combinations, mountings, and options for custom solutions
- Global Compatibility: Interchangeable with international standards for easy replacement & integration
