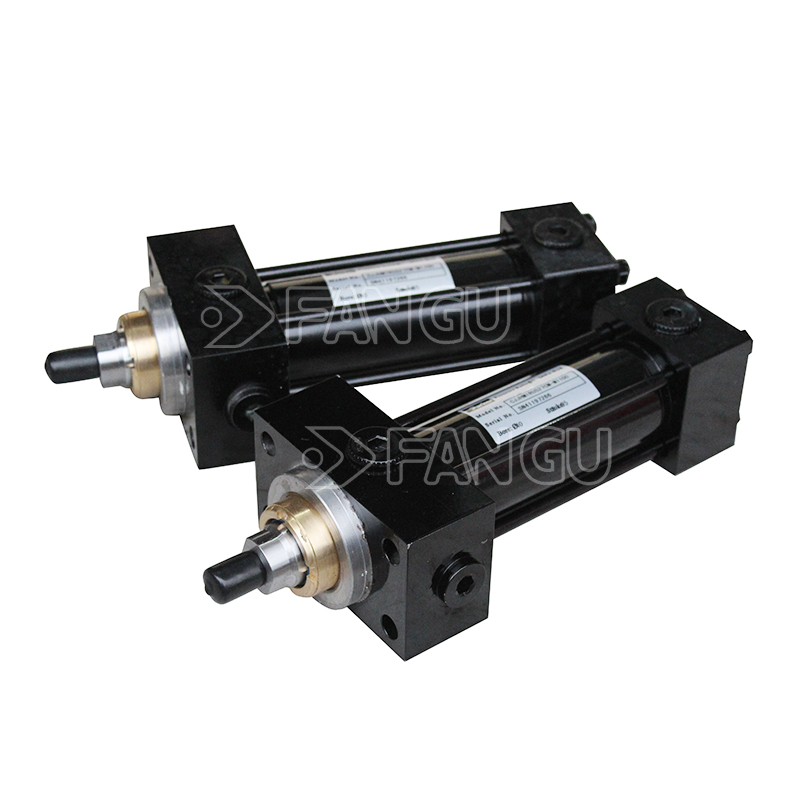

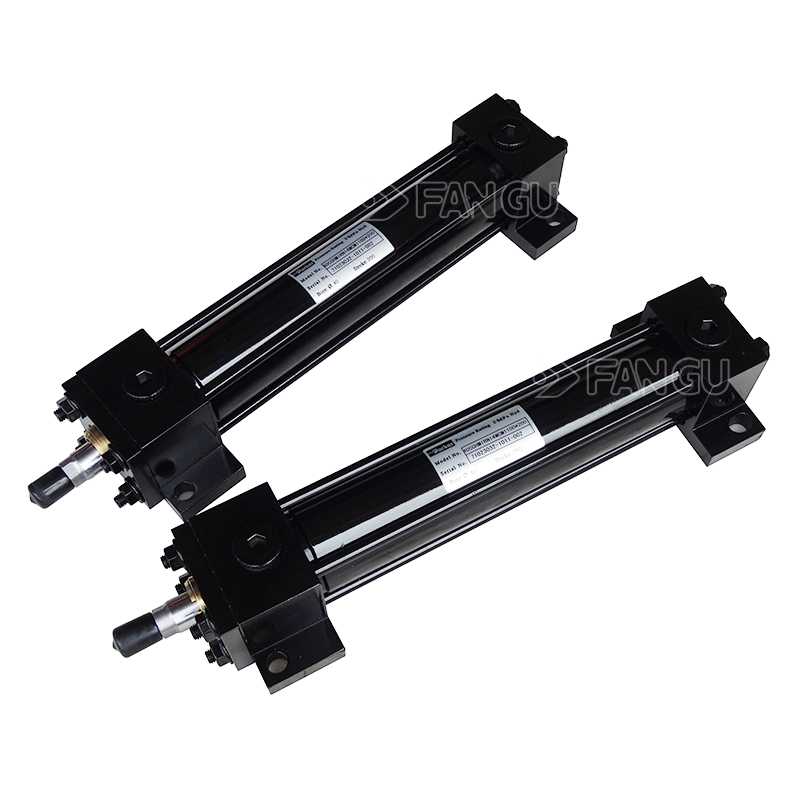

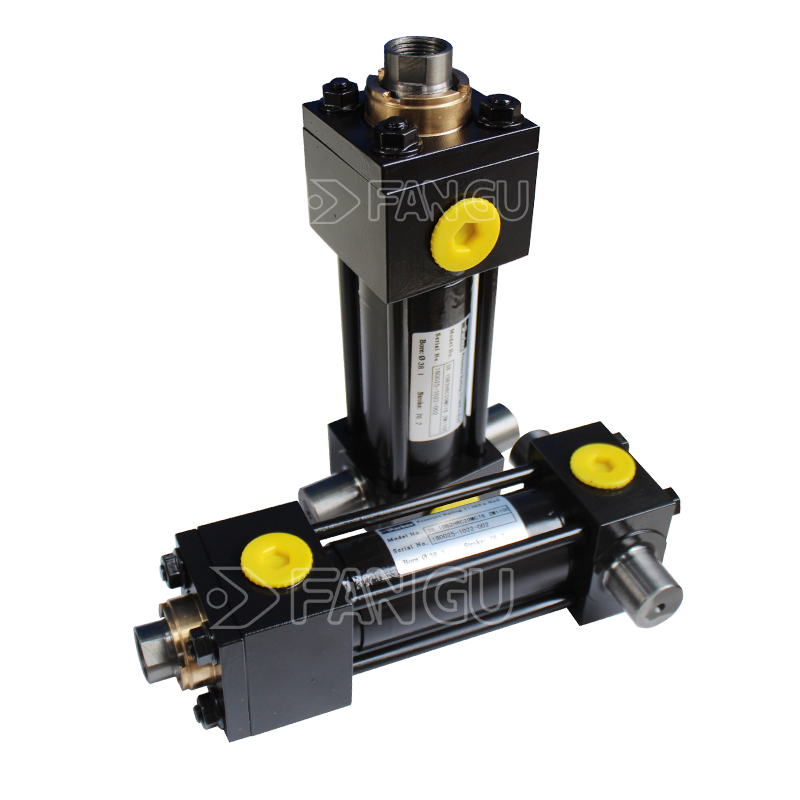

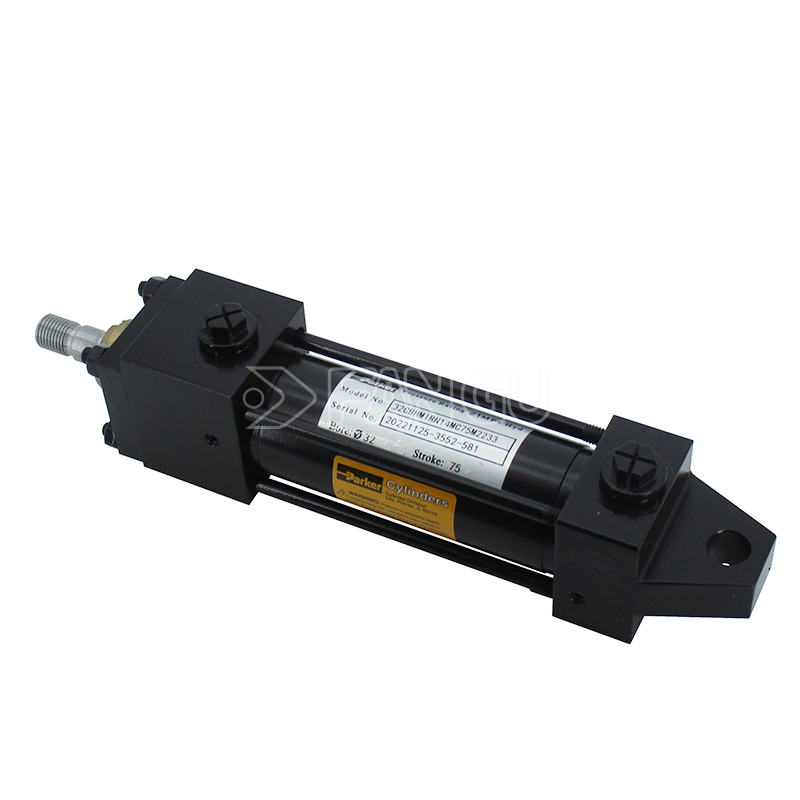

Parker 160H Series Hydraulic Cylinders
Product Introduction
Parker 160H Series is a heavy-duty, industrial hydraulic cylinder line engineered for high-performance, long-life operation in the most demanding industrial environments. Built with Parker’s global hydraulic expertise, these cylinders combine robust construction, precision manufacturing, and advanced sealing technology to deliver reliable linear motion and force for critical machinery.
Example models:
Material Handling
- 25FAHMIR12MC50
- 32FBHMIR14MC80
- 50LAHMIR18MC150
- 63STHMIR22MC200
Construction Equipment
- 80FAHMIR36MC300
- 100FBHMIR45MC400
- 125LDHMIM56MC500
- 160TBHMIR70MC600
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Design Standard: Heavy-duty industrial construction, interchangeable with global industry standards
- Rated Pressure: Up to 160 bar (2300 psi) standard, with high-pressure variants available
- Bore Sizes: Metric range from 25 mm to 200 mm
- Stroke: Customizable to any practical length
- Construction: Double-acting, single rod design; tie-rod construction for strength and serviceability
- Materials:
- Cylinder Tube: Precision-honed, high-strength steel
- Piston Rod: Induction-hardened, chrome-plated steel for wear and corrosion resistance
- Pistons: Cast iron or steel with precision grooves
- Sealing System: Parker’s premium Lipseal™ and TS-2000™ sealing packages – low friction, zero leakage, long service life
- Temperature Range: Standard -20°C to +150°C, compatible with mineral oils and synthetic fluids
- Buffers: Optional adjustable cushions on rod end, head end, or both to reduce end-of-stroke shock
- Mounting Styles: Comprehensive range including FA, FB, LA, LD, SD, ST (foot, flange, trunnion, clevis)
- Heavy-Duty Durability: Reinforced design withstands high shock loads, side loads, and continuous industrial cycles
- Leak-Proof Performance: Multi-stage, precision-machined sealing system eliminates internal/external leakage
- Low Maintenance: Robust components and easy disassembly reduce downtime and service costs
- Precision Movement: Smooth, stable operation with minimal friction and hysteresis
- Flexible Configuration: Wide selection of bore/rod/stroke combinations, mountings, and options
- Global Compatibility: Interchangeable with ISO 6020/2 and DIN 24554 standards
