Conforti MD Series Integrated Magnetic Piston Sensors Tie Rod Hydraulic Cylinders Position Feedback
Example Models:
- MD25/18 M 150 S
- MD40/28 HK 400 C
- MD63/45 SX 600 V
- MD80/56 FF 1000 S
- MD100/70 EK 1200 C
- MD125/90 SX 1800 V
Conforti MD Series Magnetic Tie Rod Hydraulic Cylinders
General Overview
The MD series are magnetic tie rod hydraulic cylinders manufactured by Conforti, built in accordance with ISO 6020/2 – DIN 24554 tie rod cylinder standards. Equipped with an integrated magnetic piston, this model supports external magnetic proximity sensors to detect piston position without mechanical contact. It delivers reliable position feedback for automated control systems and serves as a sensor-ready variant based on the standard CD series hydraulic cylinder platform.

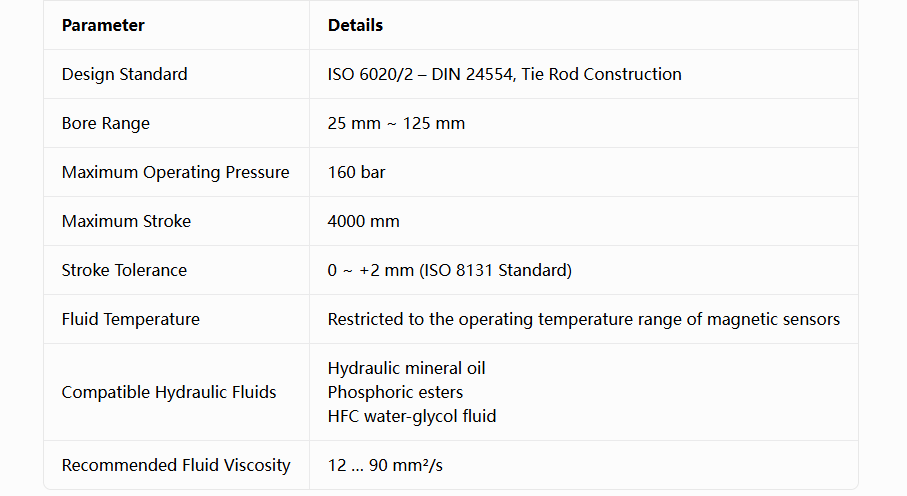

Technical Specifications
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.

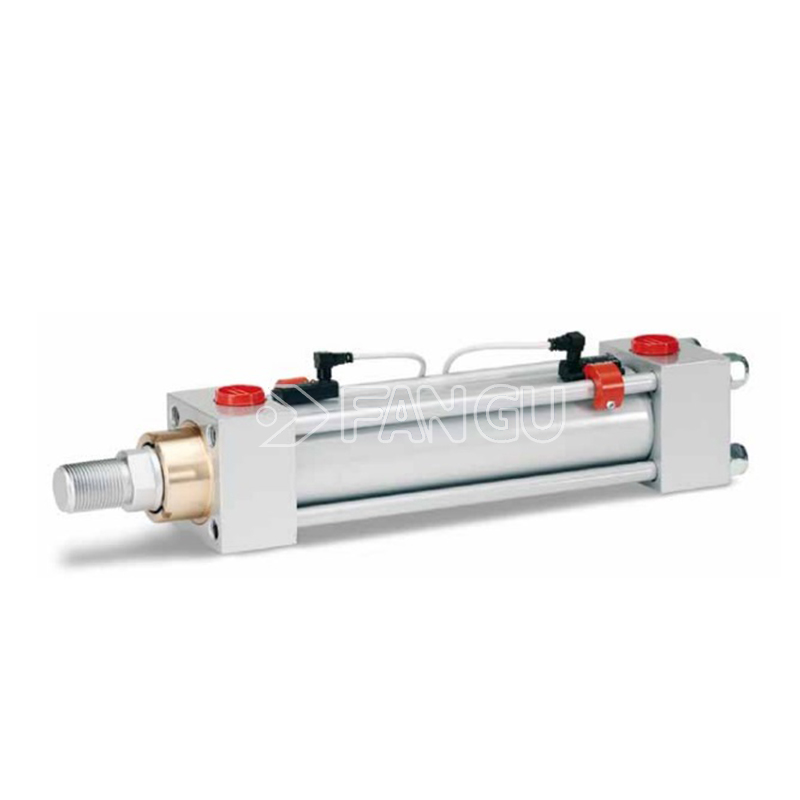

- Magnetic Integrated Piston: Built-in permanent magnet inside the piston, enabling non-contact position detection via externally mounted magnetic switches. No mechanical slots cut into the cylinder barrel.
- Standard ISO Tie Rod Structure: Interchangeable mounting dimensions consistent with ISO 6020/2, compatible with standard CD series installation accessories.
- Sensor Mounting Grooves: Barrel fitted with dedicated slots for easy assembly and adjustment of magnetic proximity sensors. Multiple sensors can be installed to detect multiple intermediate positions.
- Wide Fluid Compatibility: Suitable for mineral oil, phosphate ester and HFC water-glycol fire-resistant fluids; alternative FKM sealing packages available for special media.
- Ultra-Long Stroke Option: Custom stroke length up to 4000 mm to satisfy long-travel linear motion demands.
- Non-contact position sensing, no mechanical wear from limit detection.
- Flexible adjustable sensor positions for multi-point stroke monitoring.
- Standard ISO mounting dimensions, easy direct replacement of ordinary tie rod cylinders.
- Robust tie rod construction for stable performance under cyclic industrial operation.
- Compatible with common fire-resistant hydraulic fluids for safety-critical working environments.
- Modular configuration: optional end cushioning, various mounting styles and customized sealing systems.
