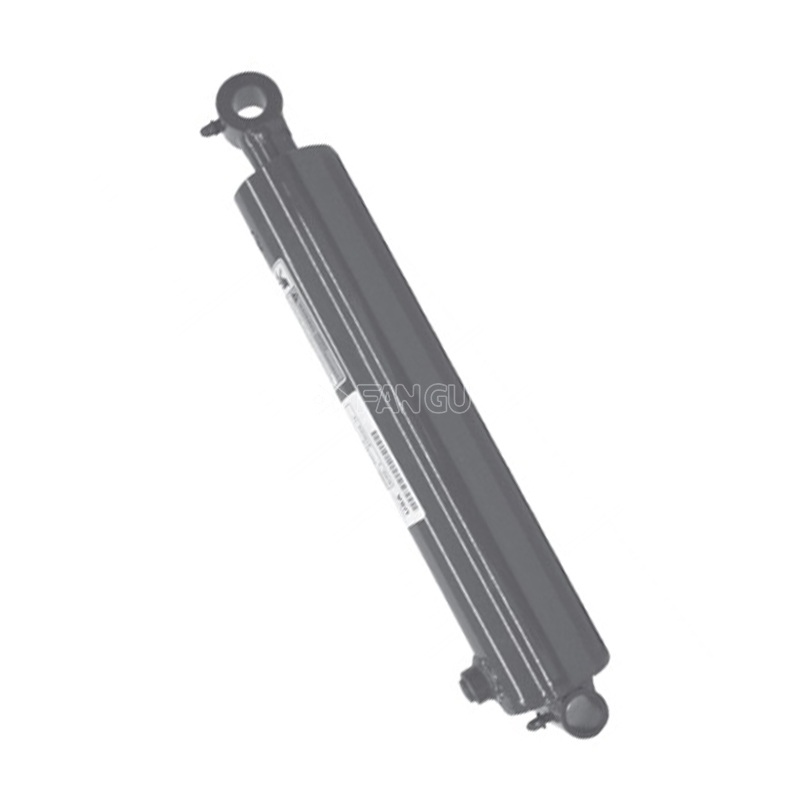

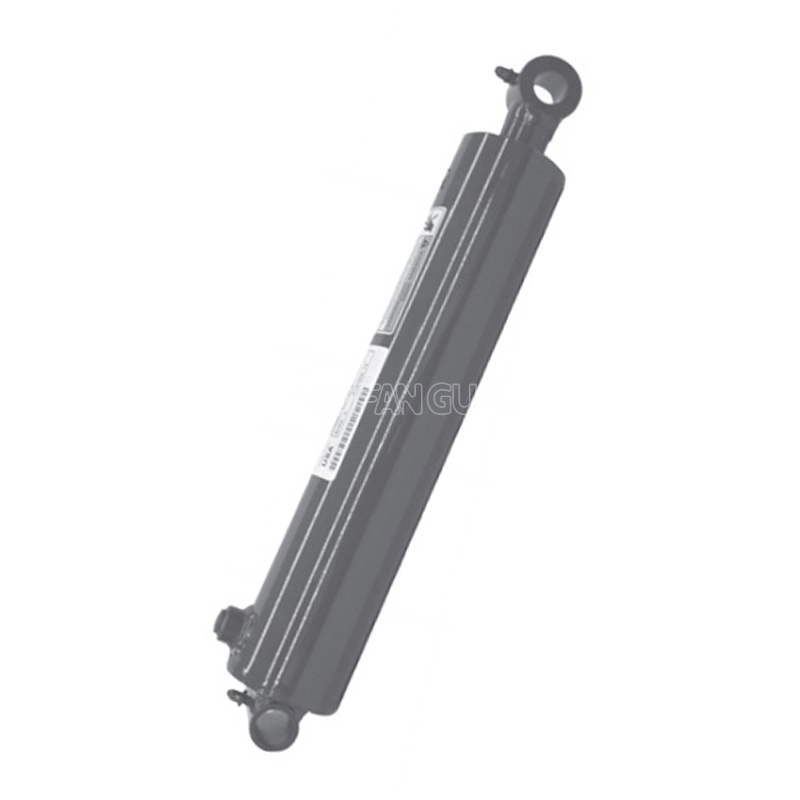

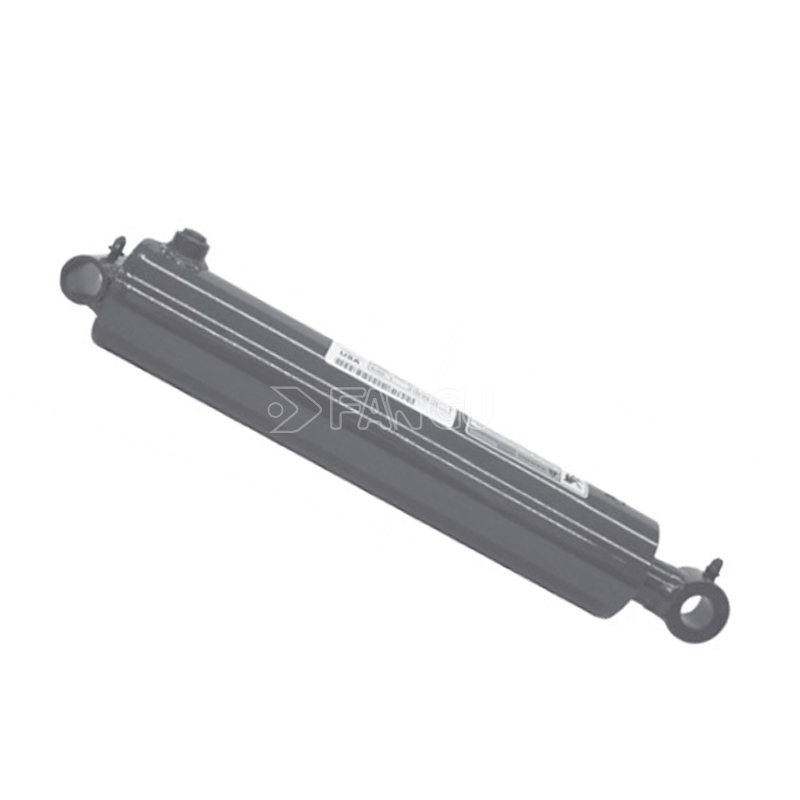

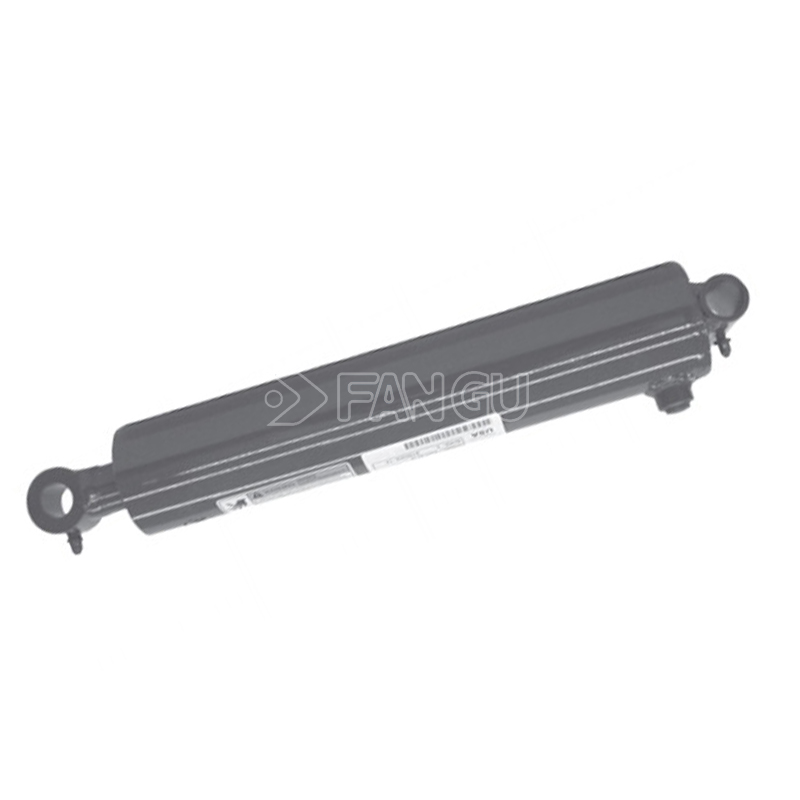

American Prince Royal Line PMC Heavy‑duty Welded Double‑acting Hydraulic Cylinders 2,500 PSI
Example Models:
- PMC-5608
- PMC-5612
- PMC-5614
- PMC-5616
- PMC-5620
PMC-5624 - PMC-5630
- PMC-5632
- PMC-5636
- PMC-5640
- PMC-5642
Prince Royal Line Product Introduction

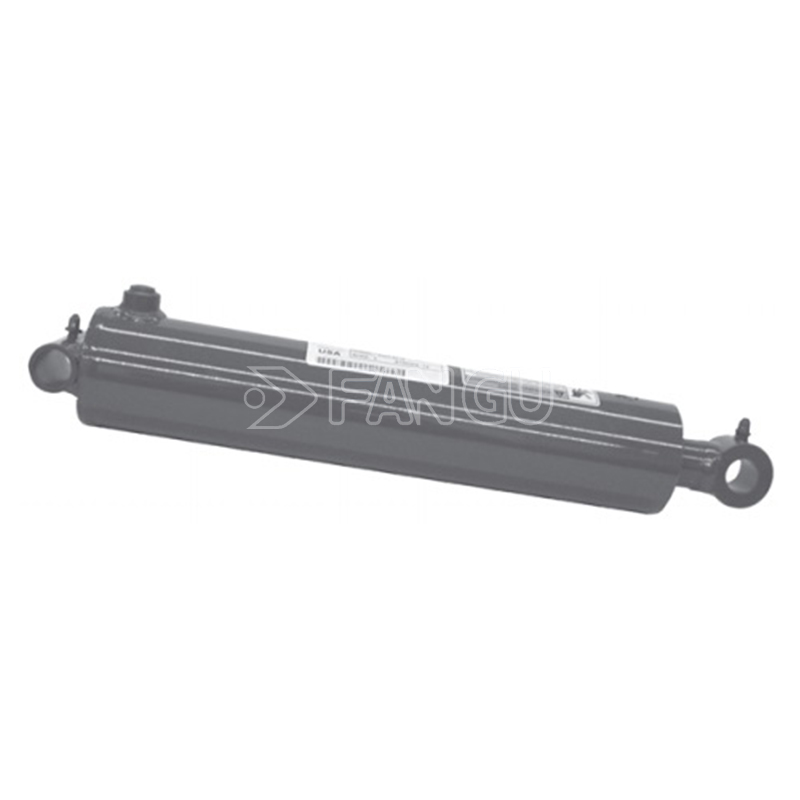

The Royal Line by Prince Manufacturing is a series of heavy‑duty welded double‑acting hydraulic cylinders rated for 2,500 psi (172 bar) continuous operation. Designed for medium‑to‑heavy duty applications, it features robust all‑steel welded construction, honed tubing, and versatile mounting options, delivering reliable performance in agriculture, construction, material handling, and general industrial machinery.
Standard Technical Specs
- Pressure Rating: 2500 PSI
- Action: Double‑acting
- Rod Diameter:
- 2.5″ bore: 1.375″ rod
- 3″ bore: 1.625″ rod
- 3.5″ bore: 1.75″ rod
- 4″ bore: 2.00″ rod
- Port Size: #8 SAE (3/4‑16 ORB)
- Mount Types: Clevis (CL), Crosstube (CT), Tang (TG)
- Seal: Standard NBR / Polyurethane
- Finish: Black paint
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Double‑acting design: Provides power in both extend and retract directions.
- Working pressure: 2,500 psi (172 bar) maximum continuous.
- Bore sizes: 2.5", 3", 3.5", 4" (standard).
- Stroke lengths: 4" to 60" (custom lengths available).
- Construction: All‑steel welded body with honed steel tubing for smooth operation.
- Piston rod: Hard‑chromed, ground, and polished; optional RoyalPlate Plus® coating (7‑year corrosion warranty).
- Components: Ductile iron piston and gland; cross‑tube end fittings with grease zerks for easy maintenance.
- Seal system: Urethane U‑cup rod seal, urethane wiper, O‑ring with backup washers, and cast iron ring piston seals for durability and leak resistance.
- Mounting: Universal cross‑tube mounts (standard); clevis, tang, or spherical ball bushing options available.
- Port size: 3/8" or 1/2" NPTF (depending on bore size).
- Finish: Gloss black paint for corrosion protection.
- Agricultural equipment (loaders, balers, plows)
- Construction machinery (backhoes, excavators, lifts)
- Material handling (forklifts, cranes, hoists)
- Industrial automation (presses, conveyors, actuators)
- Mobile equipment (dump trucks, trailers, utility vehicles)
