ROEMHELD Series B1.7385 Double-acting Compact-guided RS Hydraulic Slides with 4 Guide Rods
Example Models:
- RSS30503100
- RSS41003100
- RSS51253100
- RSS61503100
- RSS71753100
- RSV61253100
- RSV71503102
- RSV81754110
- RSV92005010
ROEMHELD Series B1.7385 RS Hydraulic Slides
General Overview

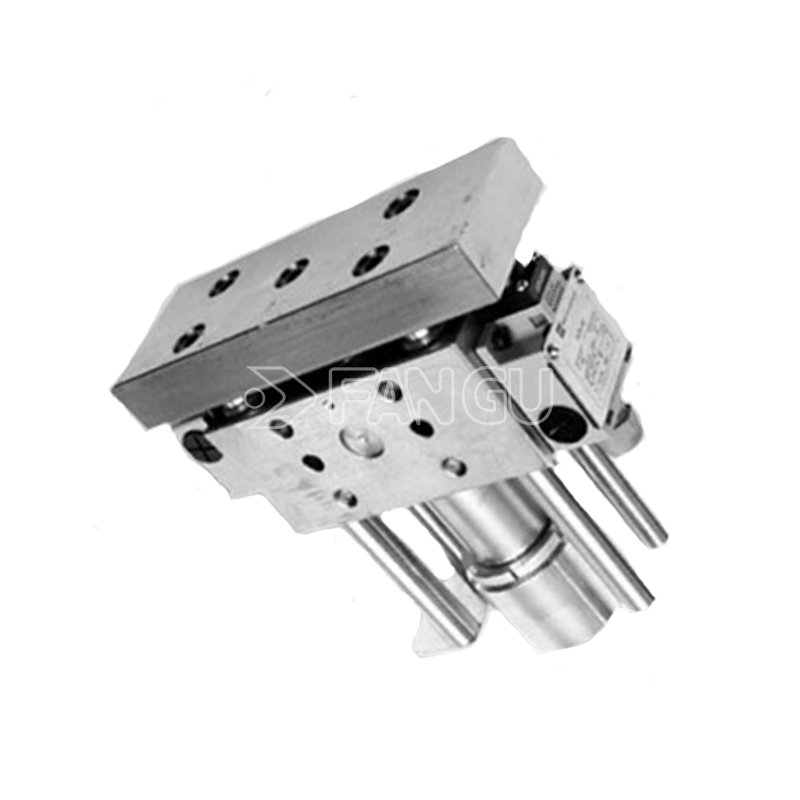

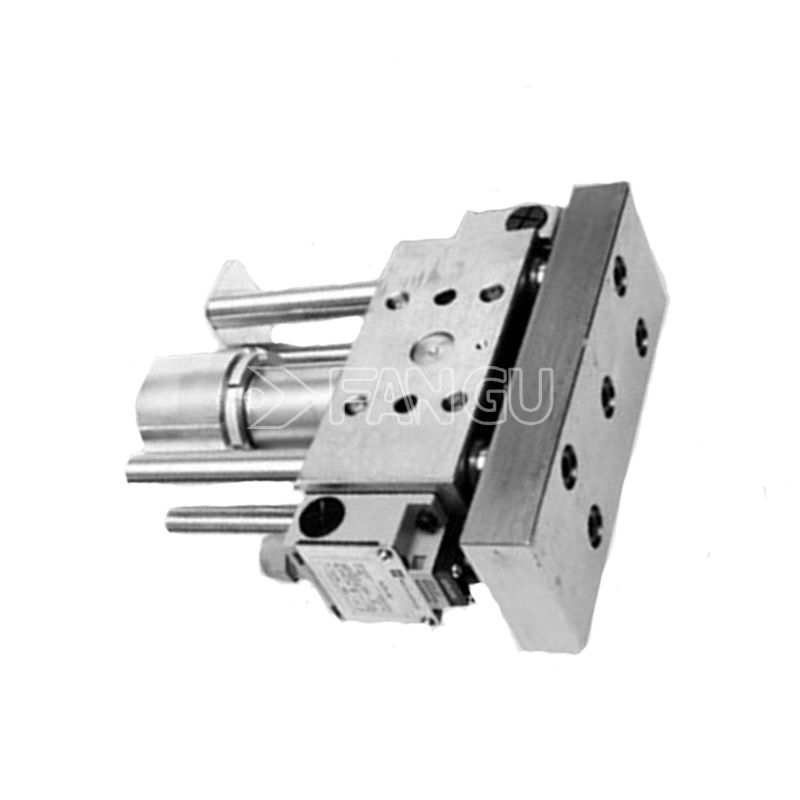

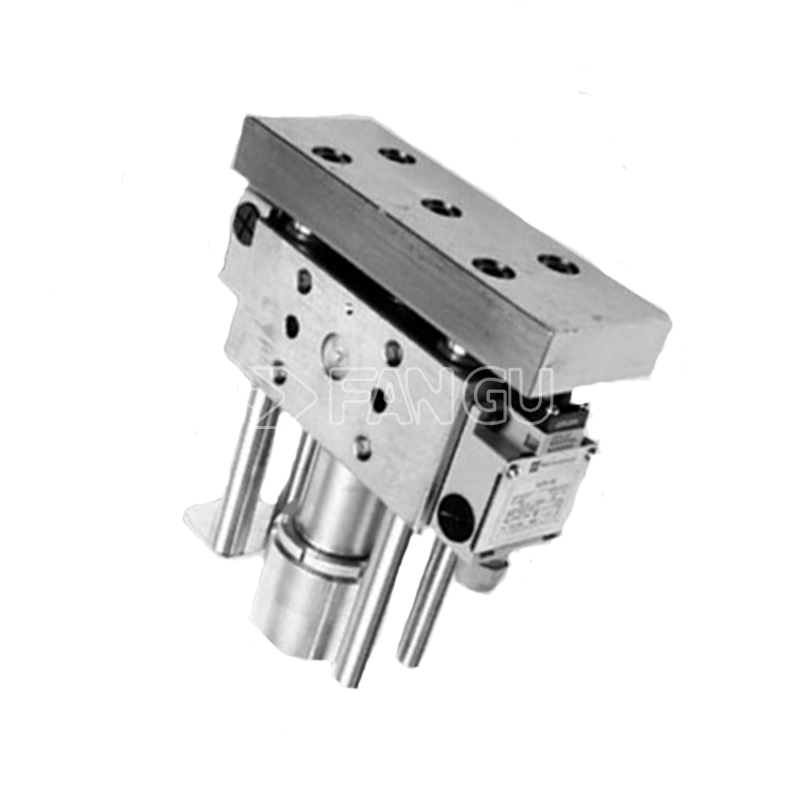

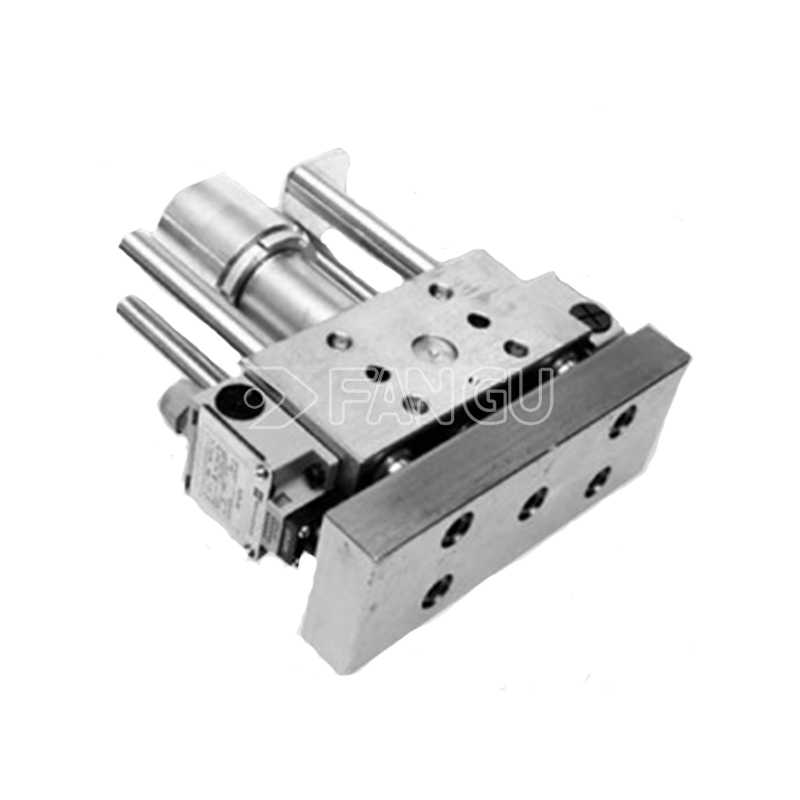

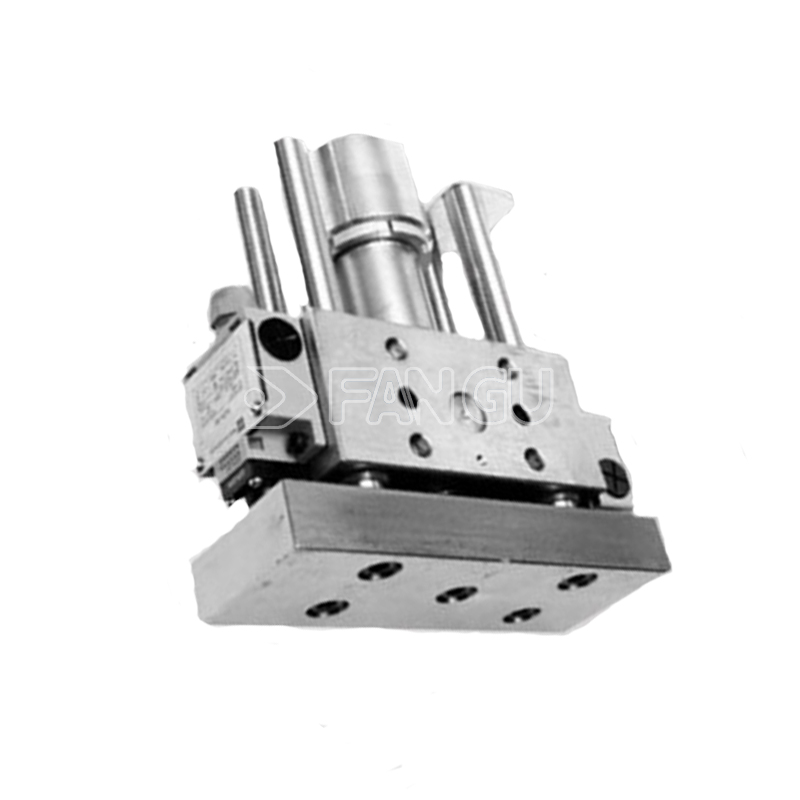

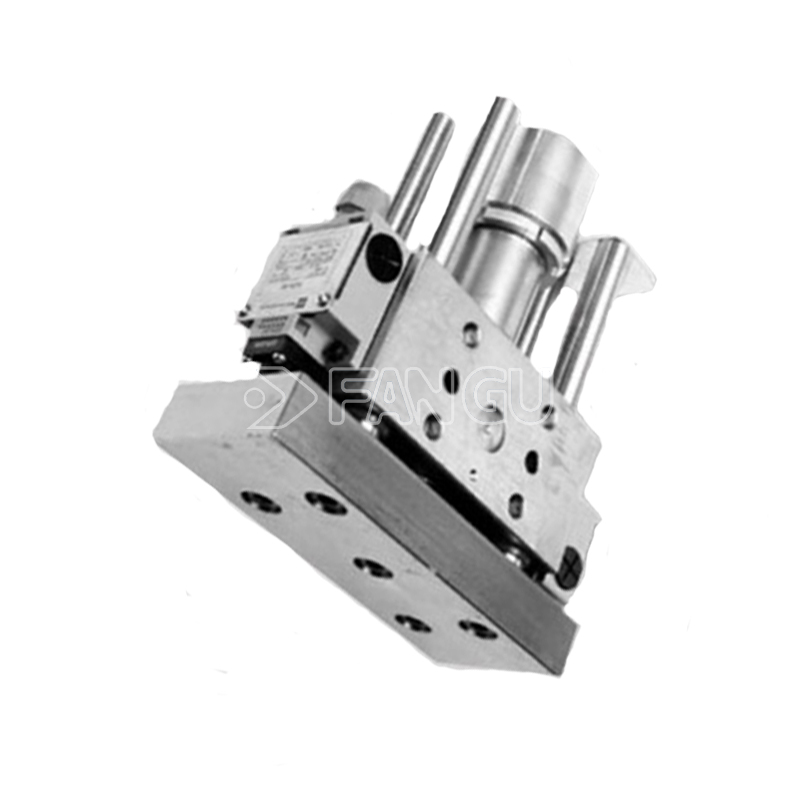

The B1.7385 RS Hydraulic Slide is a double-acting compact guided hydraulic cylinder developed by ROEMHELD. Equipped with four parallel lateral guide rods, this unit is engineered to withstand high lateral loads and bending moments that standard hydraulic cylinders cannot bear.
The rigid front mounting plate is jointly fixed on the piston rod and four guide rods, providing a stable installation interface for fixtures, tooling and workpieces. Thanks to its integrated compact structure, it is widely adopted for linear motion in machine tool fixtures, mould systems and automated production equipment.
A: Depends on the style of tie-rod. We would like to cast and forge once the quantity above 100 pcs.
A: Well, it depends on the quantity and style of hydrualic cylinders, at least 60 days if we make casting and forging, at least 35 days by maching.
A: Sure, we are the manufacutuer and trading of hydraulic cylinder.
A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through
a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.
A: Sure. Show us the drawing, we will quote for you soonest.
A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.
- Operation Type: Double acting
- Maximum Operating Pressure: 250 bar
- Minimum Operating Pressure: 25 bar
- Available Standard Strokes: 50 / 75 / 100 / 125 / 150 / 175 / 200 mm
Custom special strokes available upon request
- Stroke Tolerance: ±1 mm; Extended: ±0.8 mm; Retracted: ±0.2 mm
- Piston Diameter Range: 25 mm ~ 100 mm
- Rod Diameter Range: 16 mm ~ 60 mm
- Max Push Force Range: 12.3 kN ~ 196.4 kN
- Max Pull Force Range: 7.2 kN ~ 118.2 kN
- Maximum Travelling Speed: ≤ 0.5 m/s
- Mounting: Internal threads and through holes for flexible installation
- Hydraulic Connection: Pipe thread (G thread) or manifold bottom mounting; top connection optional
- Permitted Hydraulic Fluid: HLP mineral oil, HFA/HFB/HFC water-glycol, HFDU synthetic ester
- Four-rod parallel guiding structure, effectively absorbs lateral force and bending torque, avoids piston rod side load damage.
- Compact integrated design, saves installation space in tight fixture layouts.
- Modular configuration: freely select stroke, cushioning, sealing material and position feedback.
- Hardened chromium-plated guide rods ensure long service life under continuous cyclic operation.
- Machinable front plate supports customized fixture connection without extra adaptor plates.
- Multiple hydraulic connection modes simplify manifold layout design.
